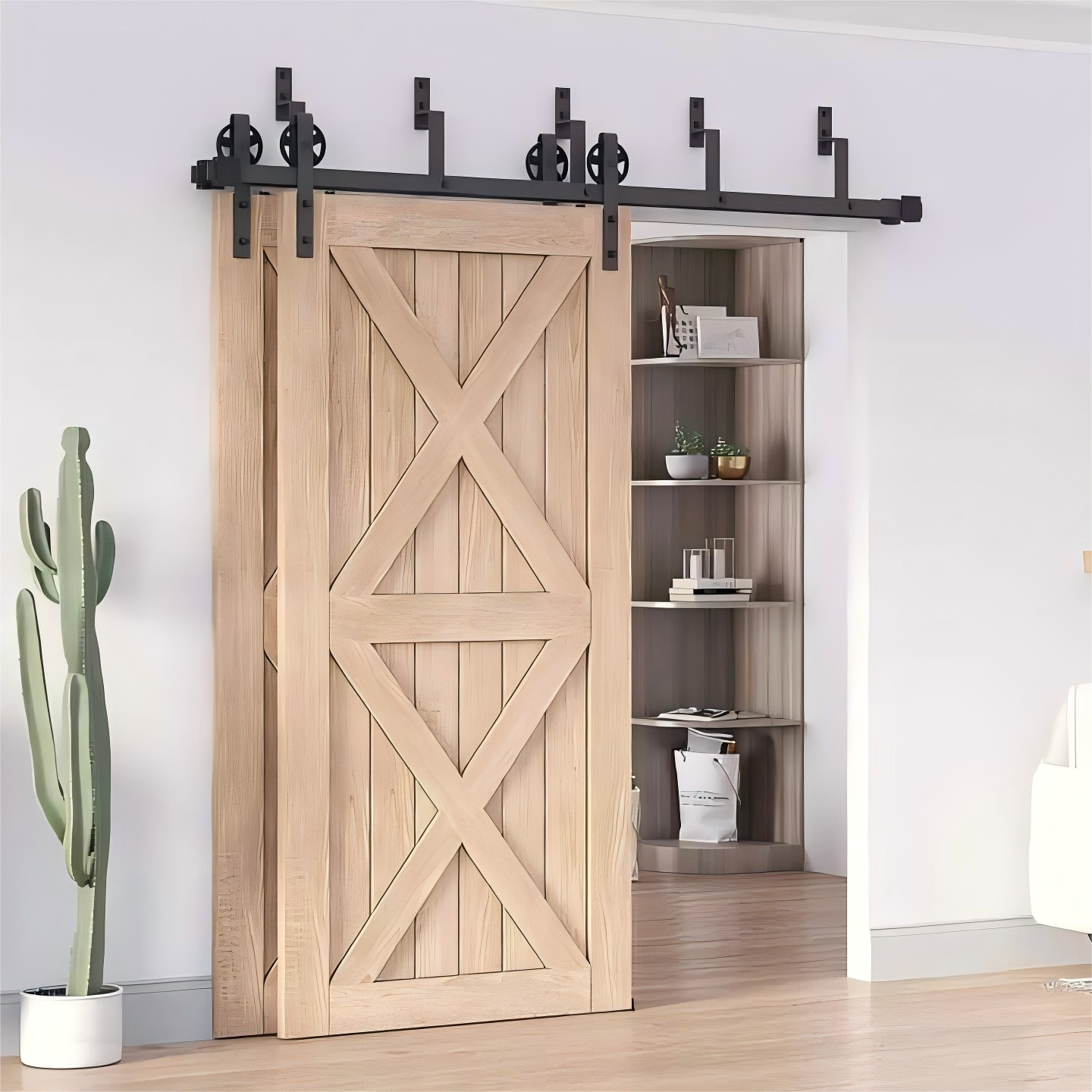

How to Securely Install a Barn Door on a Concrete or Brick Wall
A barn door can glide across a masonry wall and look clean and modern. It will also last for years if the anchoring and alignment are correct. Masonry calls for a different playbook than wood framing. This guide gives a clear plan for a masonry barn door installation on concrete, brick, or CMU block. Follow the steps, and your barn door will feel solid, run quietly, and pass a close inspection.
Why Is Installing a Barn Door on Masonry Different?
Masonry changes everything from drilling to fastening. Concrete and brick need carefully sized holes, thorough dust removal, and anchors with known pull and shear values. Edge distance, embedment, and the condition of the substrate control capacity. Hollow CMU has webs and voids that influence placement. A barn door also concentrates load near the head of the opening, so a header board spreads force, gives you a flat plane for the track, and preserves room for minor alignment changes. Treat the wall type, anchors, and load path as one system, and the barn door will stay true.
What Tools and Hardware Do You Need for a Masonry Barn Door?
Preparation drives quality. The right kit reduces drilling time, improves anchor performance, and keeps the work clean. Lay everything out before you mark a line, then verify that each item matches the wall type and the barn door hardware you plan to use.
- Drilling and layout tools: SDS-Plus rotary hammer or hammer drill, carbide masonry bits sized to anchors, tape and level, laser line, pencil, plus vacuum and blow-out bulb for clean holes.
- Fastening and tuning tools: Impact driver or ratchet with sockets for track and rollers, measuring tape for equal hanger centers, and a square for verifying reveals.
- Safety gear: Eye and hearing protection, respirator rated for silica dust, and gloves for handling cut edges and anchors.
- Installation parts: Sealed header board in 1×6 or 1×8, rated masonry anchors, spacers for the barn door track, and tuning parts such as floor guide, soft-close kit, door sweep, and brush seals.
Anchor Matching Guide
| Wall Type | Anchor Family | Typical Embedment | Notes |
| Solid concrete | Concrete screws or wedge anchors | 1¼–2½ in | Respect edge distance and hole diameter |
| Solid brick | Concrete screws or screw anchors | 1¼–2 in | Drill into brick face, avoid soft mortar |
| Hollow CMU | Screw anchors for hollow block | Per manufacturer | Aim for webs, avoid thin shells |
Clean every hole completely. Residual dust can reduce capacity and allow creep under load.
Step 1: Securely Mount the Header Board to a Concrete or Brick Surface
The header board is the foundation for the barn door track. A straight, level, fully supported board protects the wall, improves glide, and simplifies later adjustments. Spend time on layout and cleanliness so the anchors deliver their rated strength.
Lay out and level the board line
Mark the track height and offsets, confirm door height and handle clearance, and snap a level line so fasteners land well within the header board.
Pre-drill the board and transfer marks
Countersink if needed, space holes 12–16 inches on center, keep at least 2 inches from ends. Clamp the board on the line, mark the wall through the holes, and check for embedded services.
Drill and clean the masonry holes
Drill to the specified depth with the correct bit. Vacuum and blow out dust until the hole interior is clean and dry. Skipping this step reduces anchor performance.
Set anchors, mount, and torque
Install anchors per instructions, draw the board tight in a star pattern, verify level and straightness, then bring each fastener to final torque. Seal any fresh cuts on board edges.
A well-mounted header board spreads the load and creates a reliable plane for the barn door track, which reduces racking and improves glide.
Step 2: Attach the Track and Hang Your Door
With a solid base in place, focus on alignment and clearances. Plan the track, mount it with the correct stand-off, then tune the slab so the barn door travels straight and quietly. Keep a calm pace and verify each adjustment before moving on.
Plan track length and positions
Track length usually equals twice the barn door slab width. Mark track holes, stop locations, and soft-close trigger points on the header board before fastening.
Mount the track with spacers
Use spacers from your barn door hardware kit to clear trim and create an even reveal. Fasten along the line and confirm the track remains straight.
Install rollers, then position the floor guide
Mount rollers with equal center distances from the slab top, then align the floor guide on the track centerline. On tile or radiant floors, use a surface-mounted guide anchored in grout lines or shallow inserts.
Hang, tune reveals, add soft-close and stops
Lift the slab onto the track, cycle full travel, and adjust the floor guide until contact feels smooth. Place soft-close triggers so the slab settles gently, then lock stops so handles never touch trim.
For double barn doors, fix one leaf with a top or bottom bolt first, align the active leaf to meet cleanly, and recheck light lines along the meeting stile.
What Final Safety Checks Ensure a Heavy-Duty Masonry Barn Door?
A short review protects the wall, the gear, and everyone using the door. Run these checks after installation and again the next day. Small corrections now prevent service calls later and keep the barn door feeling premium.
- Glass and hardware verification: A glass barn door must be tempered or laminated, with visible safety markings. Confirm roller, hanger, and track fasteners are seated and secure.
- Anchors and torque: Recheck embedment, edge distance, and torque on all masonry fasteners. If a hole feels weak, shift within the header board and drill a new hole to spec.
- Travel, soft-close, and stops: Run full travel, listen for clicks or rubs, adjust the floor guide, and confirm the soft-close pulls the slab fully home. Lock stops so handles clear trim.
- Privacy and next-day review: Install a privacy lock designed for sliding barn doors with an emergency release from the hallway, then repeat torque checks 24 to 48 hours later.
Finalize Your Masonry Barn Door Plan Today
A durable barn door on concrete or brick comes from a few disciplined moves. Confirm wall type and choose anchors with published capacities. Mount a sealed, level header board, set the barn door track with proper spacers, then hang the slab and tune the floor guide, soft-close, and stops. Add brush seals and a door sweep, and use a sideboard if light control matters. Take a clear wall photo, note opening width and height, pick your slab style, and select a stainless barn door hardware kit sized to the door weight. With that checklist in hand, you can drill with confidence and enjoy a quiet, long-lasting masonry barn door installation.
5 FAQs About Barn Door Masonry Installation
Q1. Will chemical anchors work for a barn door on masonry?
A: Yes, but consider them a specialty option. Chemical anchors are acceptable in hard concrete and grouted brick when holes are cleaned correctly. Follow the minimum temp and full cure. Avoid edge positions. Do not apply weight to the track until the cure is finished.
Q2. How do you estimate door weight in order to size hardware and anchors?
A: Calculate area and multiply by weight per sq. ft. of material. Engineered wood or MDF is 2.5 to 3.5 lbs per sq. ft. Tempered glass is 6 to 7.5. Add hardware weight, then multiply by a minimum 25 percent safety factor.
Q3. What if the brick or concrete is crumbly or cracked?
A: Fix it first. Use a strong repair mortar and let it cure. Move anchor points to a solid area. Make the header board longer to cover weak spots. Do not put anchors in mortar joints or along the patch edges. Check the embedment and torque again after the repair time.
Q4. How can you minimize vibration and noise occurring in masonry?
A: Install thin neoprene pads behind the header board and utilize nylon or fiber washers beneath track fasteners. Ensure that you slide the floor guide smoothly and it is in a centered position. This arrangement minimizes noise, saves weak plaster, and ensures barn doors are quiet when in daily use.
Q5. How should I plan for future service without redoing masonry?
A: Design for service. Use a header board that has slotted holes for track screws, take a photo of the layout, and maintain an easy log of torque and anchors. These steps allow you to replace rollers or change the slab later without needing new holes in the wall.
