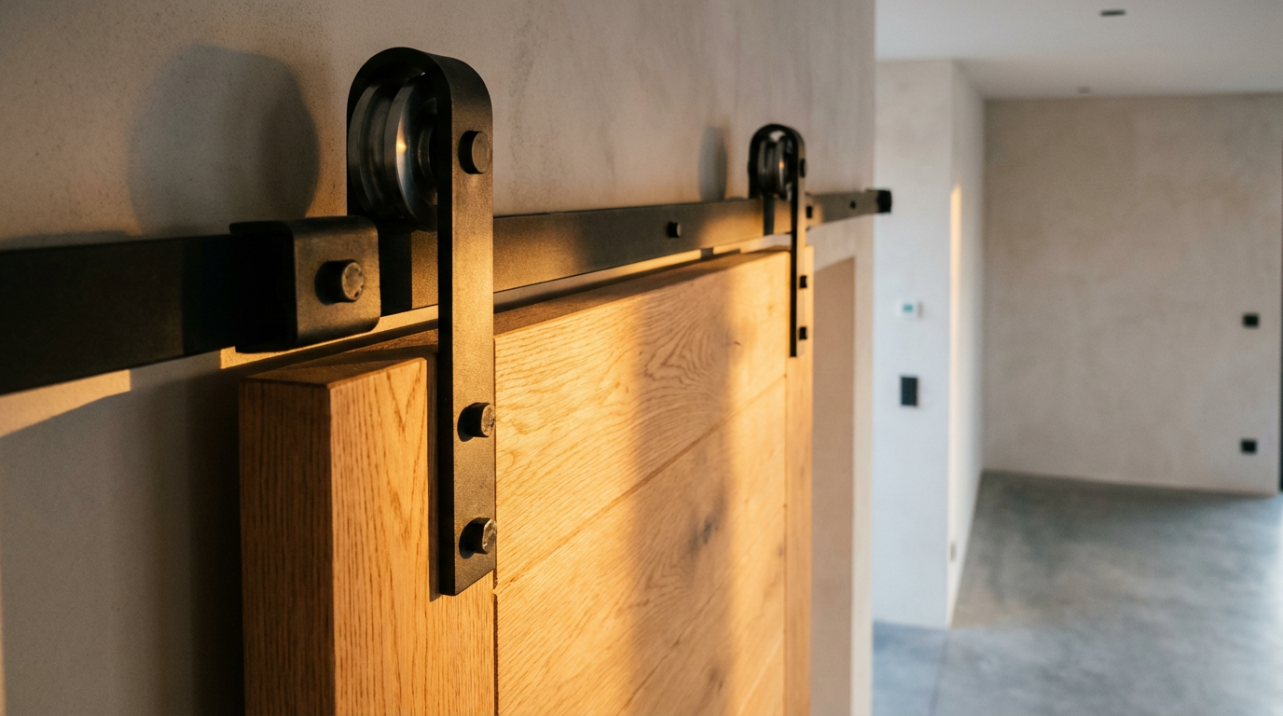

What Door Panel Weight Requires Reinforced Tracks?

Reinforced tracks become essential once a sliding or overhead door panel moves beyond roughly 150–200 lb or pushes your hardware past about 70–80% of its rated capacity, especially when that door sees daily use in a compact space.

Is your barn or pocket door starting to grind, or does your garage door shudder every time it rolls overhead? Heavy doors hung on “standard” kits often start out smooth but slowly bend tracks, chew up rollers, and tug at the wall until cracks and gaps show around the opening. Match the door’s actual weight to the right track capacity and support and that same panel can glide quietly for years. This guide walks you through how to estimate weight, read hardware limits, and decide exactly when reinforced tracks are non‑negotiable.

How Door Weight and Tracks Work Together

A track system is more than a metal rail on the wall. It is a set of horizontal, vertical, and curved channels plus rollers that guide the door’s movement, distribute its weight, and keep opening and closing safe and predictable, as garage door specialists explain in their overview of overhead track types and functions here. When the panel is light and the track is generously rated, everything feels almost effortless. As weight creeps up and the track is undersized, the same path becomes noisy, sticky, and eventually dangerous.

On overhead garage doors, the track is supported by backhang brackets that hold the horizontal sections level when the door is open. These backhangs stabilize the track, keep weight evenly distributed, and prevent bending and wobbling under the door’s mass, which is why installers treat track and backhang placement as a system here. A similar principle applies to wall‑mounted barn and pocket doors: the rail, its brackets, and the wall framing behind them all share the weight, and any weak link shows up as sag, scraping, or hardware that slowly pulls out of the surface.

In small homes and micro‑apartments, where one sliding panel may double as a room divider, privacy door, and closet cover, that load is both heavy and frequent. That is exactly the scenario where reinforced tracks are worth planning for early rather than repairing later.

Step 1: Estimate Your Door Panel Weight

You cannot choose the right track until you have a realistic sense of what the door actually weighs. For overhead sectional doors, manufacturers publish detailed weight ranges. One technical guide notes that a basic 8 ft by 7 ft non‑insulated steel garage door can weigh around 80 lb, while the same size in double‑steel insulated construction can reach about 115 lb, and large 16 ft by 7 ft doubles can run from roughly 155 lb non‑insulated to about 220 lb insulated here. All‑wood or full‑view glass doors jump much higher, with singles commonly in the 300–400 lb range and doubles often exceeding 500 lb in the same source.

If you do not have a spec sheet, you can still estimate door weight from size and construction. That same garage door guide uses surface area and material to approximate weight, with non‑insulated steel doors around 1.4 lb per sq ft and heavily insulated double‑steel doors approaching 2 lb per sq ft. A similar logic applies to sliding barn and pocket doors: a hollow‑core interior slab might weigh only 30–50 lb, a solid‑core door might run 80–120 lb, and a thick reclaimed‑wood or glass panel can easily be 200–400 lb once handles and decorative metal are included.

For very heavy architectural doors, hinge manufacturers expect substantial loads. One concealed hinge collection, aimed at thick, clad doors, specifically lists models rated up to 660 lb and backs that with selection tools keyed to door weight and thickness here. That kind of rating hints at what “heavy” really means in hardware terms and why guessing is risky; once you are in the hundreds of pounds, every support component must be chosen deliberately.

Step 2: What Counts As a “Reinforced” Track?

Reinforced tracks combine stronger steel, higher load ratings, and more robust attachment to the structure than a standard decorative kit. In sliding systems, box tracks are a good example: instead of an open flat bar, the rollers ride inside an enclosed, box‑shaped rail. A common galvanized box rail uses 16‑gauge steel and is rated for door weights up to 400 lb, while a heavier 13‑gauge version is designed for doors up to 1,000 lb, giving a clear jump in capacity for visually similar hardware.

Commercial and industrial sliding hardware follows the same pattern. Detailed sliding‑track buyer guides divide systems into light duty for doors up to roughly 400 lb, medium duty for 400–1,000 lb doors, and heavy duty for panels over 1,000 lb, where box tracks are the default and can handle extreme loads supported by robust hangers and brackets. When you choose a track in these upper ranges, you are not just getting thicker metal; you are also getting mounting hardware designed to spread the load into studs, steel, or concrete, rather than depending on a few screws into drywall or trim.

Reinforcement also shows up in how the track is supported. Overhead door specification sheets emphasize that supports should carry the full length of the track, and large doors over about 144 sq ft are typically paired with more powerful chain‑and‑sprocket drives and other heavy‑duty components here. That philosophy translates to sliding panels: long tracks for wide room dividers need more frequent, well‑anchored brackets, not just a couple of fasteners at the ends.

Step 3: When Does Door Weight Demand Reinforced Tracks?

There is no single magic cut‑off, but research and field experience point to clear thresholds.

For light interior sliders under roughly 80–100 lb, such as hollow‑core pocket doors or slim panels used to screen a laundry closet, standard tracks rated around 75–150 lb can work well as long as they are installed level and attached to solid framing. Pocket‑door hardware manufacturers commonly pair hollow doors in the 30–50 lb range with tracks rated well above that, forming a comfortable buffer between the panel weight and the track’s stated limit.

Once your panel approaches or exceeds 150 lb, you are squarely in the territory where reinforced tracks become the safer default. Barn‑door hardware specialists describe seemingly modest solid‑wood panels around 36 in by 84 in weighing roughly 200–220 lb, and note that reclaimed wood or added glass can push that to 300 lb and beyond. They also document what happens when homeowners hang 250–300 lb doors on 200 lb‑rated kits: tracks begin to sag, rollers grind, and wall fasteners loosen within months, often culminating in expensive repairs. To avoid that pattern, professional installers routinely select hardware rated for about 1.5–2 times the actual door weight, building in a margin for slamming, minor impacts, and long‑term fatigue.

At this point the math becomes straightforward. If your door weighs around 150 lb, aim for a track capacity of at least 225–300 lb. If it is closer to 250 lb, a 400 lb‑rated box track provides the same safety margin, and a 300–350 lb glass or reclaimed‑wood door belongs on hardware in the 500–600 lb range. This aligns with the way box track systems are rated, where a standard 16‑gauge rail covers many residential projects up to 400 lb and heavy‑duty 13‑gauge rails step in for doors up to 1,000 lb.

For overhead garage doors, reinforcement kicks in at surprisingly ordinary sizes. Technical data for sectional doors show that a double‑wide insulated steel door can easily weigh 200–225 lb, with wood and full‑vision glass versions running 300–500 lb or more. At these weights, robust track supports that carry the full span, correctly spaced backhangs, and, for very large doors, upgraded drive mechanisms are standard recommendations from garage door specialists. In practice, any sectional door over about 150–200 lb should be assumed to need a track system designed and installed as a reinforced assembly, not as a cosmetic afterthought.

To help situate your own project, the ranges below summarize practical thresholds.

The exact line between “standard” and “reinforced” will move a little based on how aggressively the door is used. Just as fitness experts recommend staying 20–30% below the rated limit of a doorway pull‑up bar to account for dynamic forces, it is wise to keep your sliding track comfortably under its maximum rating if the door is heavy, frequently used, or likely to be slammed.

Step 4: Structural Reinforcement Beyond the Track

Even the best track cannot compensate for a weak wall or frame. Security and door‑hardware specialists point out that the frame‑to‑wall connection, strike area, and hinge anchoring are common weak points; upgrading to longer screws that penetrate into studs and adding reinforcement plates in these areas both improves security and reduces long‑term movement and wear. For heavy sliding doors, the parallel move is to ensure there is a continuous header or steel angle behind the track that spans multiple studs rather than relying on drywall anchors or thin trim.

Understanding how the door itself is built also matters. Frame‑and‑panel doors use vertical stiles and horizontal rails to carry loads; the stiles along the hinge and latch sides are the backbone where hardware attaches, and the bottom rail is often the thickest member because it takes the most abuse here. When you hang a heavy panel on a sliding track, you are essentially asking the stile and top rail to handle a constant, off‑center load. If those members are thin, decayed, or heavily cut for glass, even a reinforced track will struggle to keep the door straight over time.

On overhead doors, the equivalent reinforcement is the backhang system. Guidance from garage door specialists emphasizes that correctly placed backhang brackets keep the horizontal tracks straight and aligned when the door is overhead, reducing stress on rollers and preventing the door from shaking or moving unevenly. When door weight increases, backhang spacing and attachment must be revisited; doubling the panel weight without strengthening those supports is a quiet invitation to track bending.

Step 5: Red Flags That Your Track Is Undersized

Certain symptoms are strong hints that a heavier track and better support are overdue. If a sliding door that once glided easily now requires a tug to start moving, the rollers or track may already be deforming under load. Grinding or scraping noises, especially at a few repeatable spots in the travel, suggest local bends or misalignment that heavier hardware and additional brackets could prevent.

On overhead doors, installers watch for uneven movement, visible gaps between rollers and track, and brackets that appear twisted or pulled away from framing, all of which can originate in overloaded or poorly supported track systems. In micro‑living spaces, where walls may have been opened, re‑framed, or layered with finishes, it is also worth checking behind the scenes: a beautiful sliding door system anchored into a thin furring wall or non‑structural partition is not truly safe once panel weights climb into the hundreds of pounds.

Putting It All Together for a Small Space

For a compact home, the best strategy is to think of door weight and track reinforcement as a coordinated design decision rather than a last‑minute hardware choice. Start by estimating the door’s weight from its size and material, using published garage door weights or weight‑per‑sq‑ft figures as a benchmark. Compare that to track options whose capacities are clearly stated, like box rails rated for 400 lb or 1,000 lb doors, and apply at least a 1.5× safety factor for anything heavier than about 100–150 lb.

Then make sure the wall, header, and backhangs are up to the task, borrowing ideas from the way garage door systems treat tracks and supports as a matched set. The result is not just a door that clears your sofa or bed; it is a piece of moving architecture that feels solid every time you touch it, even in the smallest footprint.

When in doubt, treat a heavy door as a structural element, not a decor item. If your panel is in the 150–200 lb range or beyond, reinforced tracks and thoughtful support are not overkill; they are the quiet backbone that keeps your micro‑living layout working smoothly and safely for the long haul.
