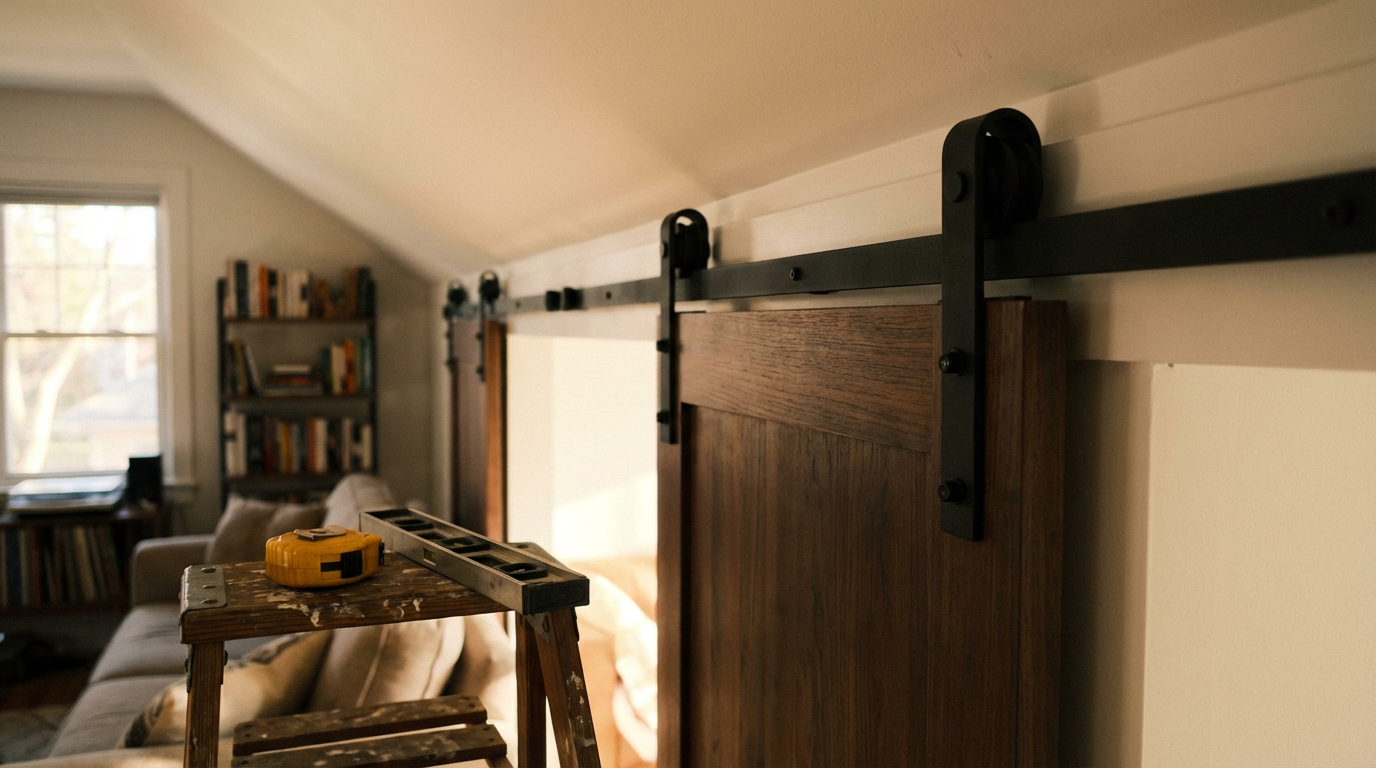

Only 2 in Above Doorway: Installation Guide for Ultra-Low Clearance Track Systems

An ultra-low clearance track system with compact hangers and a bottom guide can keep a sliding door working with only 2 in above the opening.

Confirm the clearance math before you buy

Measure the headroom at multiple points across the opening and take the smallest number as your usable limit. Trim, crown molding, and uneven ceilings can quietly steal another 1/4 in to 1/2 in in older apartments.

Many low-clearance kits set the track line at door height + 2-7/8 in, so a true 2 in headroom means you may need to shorten the door by about 7/8 in or recess the track into a header. If the door cannot be shortened, a thinner hanger profile or recessed track becomes the only viable path.

Check the floor along the full travel path, not just at the opening. A rise of more than 1/2 in can cause the door to rub before it fully opens, which feels like a jam in a tight room.

Choose hardware that protects a small space

Select hardware rated above door weight with a 20% to 30% safety margin. For a 120 lb door, a 150 to 160 lb rating reduces strain and helps the door glide instead of grind.

Prioritize compact hangers, a slim track profile, and low-profile stops to preserve every fraction of an inch. In small homes, quiet matters; soft-close dampers are worth considering to prevent slams that echo through shared walls.

Mount into studs or a continuous header so the track does not flex over time. When every inch is doing work, even slight deflection translates into rattles, uneven gaps, and a door that feels heavier than it is.

Ultra-low clearance install steps

Dry-fit and mark before drilling, because a 1/8 in error is noticeable when you only have 2 in to work with.

• Set the door on 1/2 in spacers, mark a level track line, and locate studs or the header.
• Deburr and wipe the track, then pre-drill and mount with lag screws; tighten after all fasteners are in.
• Attach hangers, lift the door, and install a bottom guide to prevent sway and lateral stress on the hangers.
• Add adjustable stops, slide the door end to end, and verify clearance at trim, baseboard, and floor high points.

If the door drifts at either end, re-check that the track is level and parallel before trimming anything.

Tune, test, and maintain

Slide the door slowly and listen; a consistent glide is normal, but scraping or vibration signals misalignment or debris. Re-check plumb and stop positions after a few cycles because fasteners can settle.

Clean the track and apply a silicone-based lubricant every few months, especially in entryways where grit collects. This keeps rollers smooth and reduces the force needed to open the door in a compact layout.

Clearance requirements vary by hanger geometry and trim thickness, so confirm the manufacturer diagram before cutting a door or header.
