What Types of Barn Door Anti-Derailment Devices Exist? Safety Performance Comparison

Barn door anti-derailment protection comes from three main elements: top anti-jump hardware, bottom guides, and travel limiters like end stops and soft-close units matched to your door's weight and room conditions so derailment stays extremely rare, even in tight, high-traffic spaces.

Why Anti-Derailment Hardware Matters in Small Spaces

A solid barn door can easily weigh 80-200 lb; if it hops off the track in a narrow hallway or studio apartment, it can pin someone, damage flooring, or block a bathroom in seconds. That is why derailment is not just an annoyance, but a life safety and accessibility issue.

Quality barn door hardware is designed as a full system, with the track, rollers, floor guides, end stops, and anti-jump devices all working together. In micro-living layouts, you feel every design choice; one missing part can mean the difference between a quiet, predictable glide and a door that wanders or slams.

If your home includes kids, older adults, or renters, assume the door will be yanked, leaned on, and used as a handhold. Your anti-derailment strategy has to be built for that reality, not for showroom-perfect behavior.

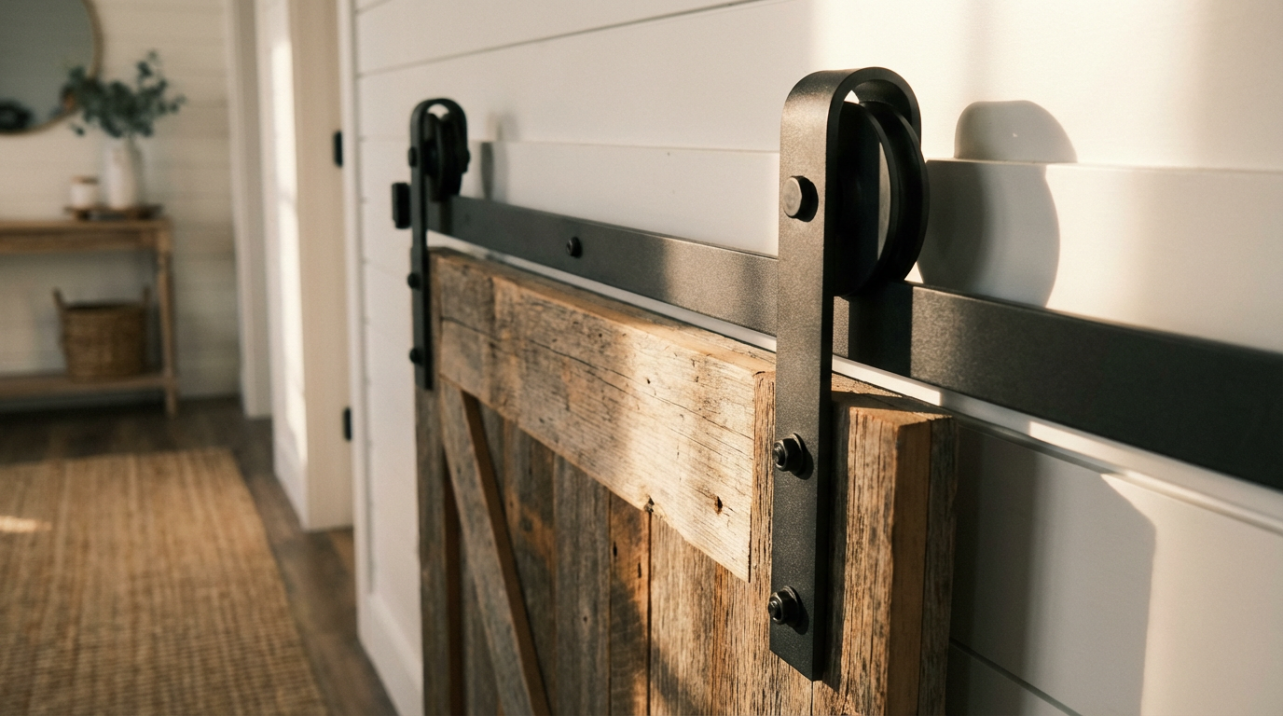

Top Anti-Jump Devices: Discs, Blocks, and Enclosed Tracks

Top anti-jump devices sit near the hanger wheels to stop the door from lifting off the rail. Many pro-grade kits explain that anti-jump discs are a critical safety feature, warning that missing discs can let a door come off the track entirely.

Common options include anti-jump discs screwed above or beside each roller, jump blocks integrated into some track kits to prevent derailment, and box-track systems where rollers ride inside a steel channel.

Discs and blocks are inexpensive but highly effective when adjusted correctly; they are your first line of defense against a child trying to lift the door or a hard slam at the end of travel. Box tracks go further by enclosing the rollers, which improves protection in busy or commercial spaces but adds cost and a more industrial look.

One nuance: top anti-jump hardware alone cannot stop a door from kicking sideways. Without a bottom guide, the door can still bind, scrape the wall, or stress the hangers.

Bottom Guides: Your Main Defense Against Wobble and Derailment

Bottom guides keep the base of the door from swinging like a gate. Industry installers emphasize that every sliding barn door needs some form of dedicated bottom control to avoid wobble and derailment, especially on wider doors around 5 ft or more.

Key guide styles and where they shine include T or fin guides with a groove in the door bottom, which provide the strongest lateral control and are ideal for heavy interior doors when you can cut a channel. Cradle or dual-clip guides that straddle the door are a great retrofit choice when you cannot modify the door. Wall-mounted roller guides protect hardwood or tile by avoiding floor drilling, which is helpful in small apartments where you want to preserve flooring. Industrial floor-mounted rollers work best for wide, heavy, or high-traffic doors in multifamily corridors or commercial settings.

For a 5 ft wide door, it is often best to use two guides, one near each end, so each guide manages only about half the lateral load when someone leans or pulls. That reduces flex and keeps the top anti-jump devices from being overworked.

Travel Limiters: Door Stops and Soft-Close

Travel limiters do not directly keep rollers on the rail, but they dramatically cut the forces that try to defeat your anti-derailment gear.

End stops clamp onto the track so the rollers cannot roll off the ends. Adjustable stops let you fine-tune how far the door opens and closes; if they are loose or missing, even good anti-jump discs can be stressed by repeated impacts at the rail ends.

Soft-close mechanisms catch the door in the last few inches and pull it gently to a stop, preventing slams. In households with kids or light sleepers, they protect fingers and ears and also reduce shock loads on rollers, tracks, and anti-jump hardware over thousands of cycles.

Treat these devices as force reducers. They do not replace anti-jump discs or guides, but they help those parts last longer and perform more consistently.

How to Choose a Safe Setup for Your Door

Here is a quick, space-conscious checklist:

• Match ratings: confirm your hardware (track, rollers, guides, anti-jump devices) is rated above your actual door weight.
• Combine defenses: pair top anti-jump discs or blocks with a bottom guide and solid end stops; never run a floating door with rollers only.
• Size guides to the door: use two guides on wide or heavy doors, and favor T or fin or cradle guides for daily-use doors in tight hallways.
• Consider users: add soft-close for kids, seniors, or rentals where you cannot control how gently people operate the door.
• Upgrade weak points: if an existing system lacks top protection, add small bolt-on anti-jump brackets and a modern floor or wall guide rather than trusting decorative hardware.

In a compact home, a barn door is not just decor; it is moving architecture. When you layer the right anti-derailment devices, you protect both the people and the precious square footage that door helps you reclaim.
