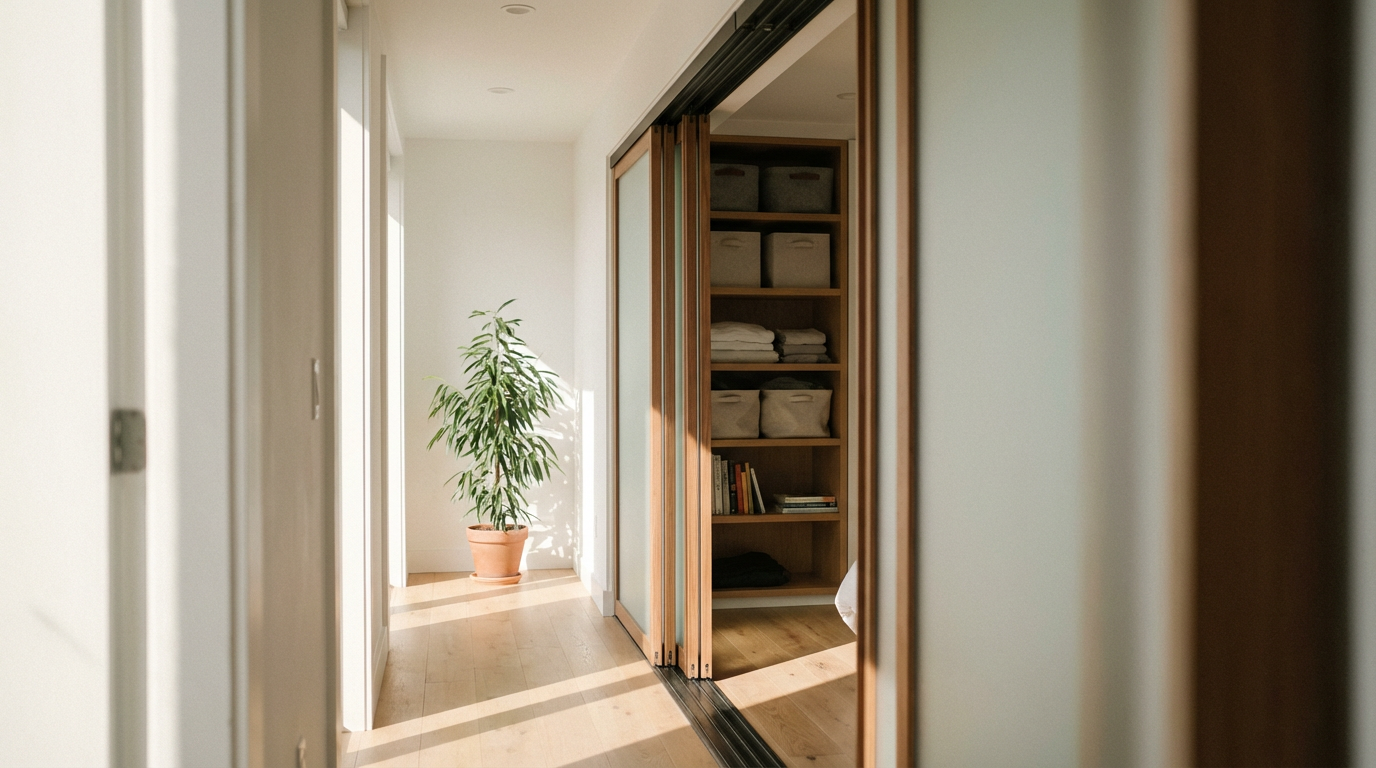

Very Narrow Wall Challenge: How to Use Telescopic Bypassing Track Systems When the Side Wall Is Shorter Than the Door

This article explains how telescopic bypassing tracks solve short side-wall openings and outlines the key measurements for a smooth install.

When the side wall is shorter than the door, a telescopic bypassing track lets multiple panels stack in a shorter run so the opening still clears, but it only works if the track height, backing, and guides are set with tight tolerances.

If a closet door eats the hallway every time it opens, aligning door movement with real traffic flow is one of the fastest ways to reclaim usable space. The planning logic and install checkpoints below help a multi-panel sliding setup clear the opening even when the wall is too short.

Why the very narrow side wall changes the door math

Space planning works best when movement patterns and clearances are set before hardware, because flow reveals how much a door can actually open in a tight room space planning. When the side wall is shorter than the door width, a single sliding panel cannot park fully out of the opening; for example, a 30 in panel with only 20 in of side wall will still block about 10 in of the opening, which means the doorway never truly clears.

Awkward narrow walls feel empty or disproportionate unless they get a focal point or function, which is why the door stack itself has to be planned as part of the wall composition awkward wall space. In a tight entry or laundry corridor, a telescopic bypass system keeps the stack tight to the wall line so you can treat the remaining surface like a designed feature rather than a leftover strip.

What a telescopic bypassing track system is

Movable partitions are a proven way to use compact layouts efficiently movable partitions. A telescopic bypassing track system uses multiple parallel tracks and hangers so panels slide past one another and nest into a shorter run, instead of needing a full door-width wall to park a single panel; in narrow closets and laundry alcoves, this change turns a half-blocked opening into a usable passage.

Small space optimization focuses on gaining function without adding footprint, which is why bypass systems are so valuable in micro living small space optimization. Because the panels stay in the wall line, you can place a hamper, desk, or shelf near the opening without a swing arc; in a 3 ft-wide hallway closet, that keeps traffic from stalling when someone opens the door.

Measurements and installation details that keep it smooth

Maximizing space efficiency depends on precise measurement and layout discipline, especially where tight tolerances can create friction space efficiency. Start by checking the floor under the track with a long level; if the floor rises more than 1/2 in, the doors can rub or fail to open fully, so set the track height from the highest point. If a tile transition lifts the floor by about 5/8 in near the jamb, use that as the baseline.

Custom solutions matter when studs do not align with the hardware layout, and a strong backing is part of a durable install. Mount the track to studs whenever possible; if they miss, install a header about 6 in tall and 4 in longer than the track so brackets land on solid wood. That means a 72 in track needs a 76 in header and a reference line about 2 in from the header bottom to center the track.

Flow and visibility improve when door movement is smooth and consistent, which is why precision in hardware height and guides matters flow and visibility. A reliable setup uses track height equal to door height plus 2-1/8 in, combining about 1/2 in floor clearance with 1-5/8 in from door top to track center, so an 80 in door places the track center around 82-1/8 in. Add rubber bumpers to the hard stops before hanging doors, fit the door guide into the bottom groove with two 1 in cross-head screws, position the guide about 1-1/6 in from the edge to avoid scraping, and cap both door ends with end plates so the system stays stable under daily use.

Pros, cons, and decision checks

Smart design and multifunctional solutions make compact spaces feel comfortable without expanding footprint, which is the main upside of telescopic bypass systems smart design. You preserve clear floor area, maintain sight lines, and keep furniture placement flexible because panels slide rather than swing; in a studio, that can mean a sofa sits closer to a closet opening without blocking it.

Space planning also emphasizes matching circulation to room scale, and telescopic tracks demand the same discipline during install. More panels and parallel tracks add hardware complexity, deeper stacking depth, and higher sensitivity to out-of-level floors, so you may need a header and careful guide alignment to prevent scraping if a soft floor or thick area rug introduces a hump.

Environmentally responsible design favors durable, right-sized solutions and materials that reduce waste over time environmentally responsible design. If you can keep existing doors and add a telescopic track, you avoid discarding usable panels; when replacement is needed, choosing panels that can be refinished supports a longer service life and less material turnover.

Finishing the narrow wall so it feels intentional

A narrow wall becomes livable when it gains a focal point and supportive function, which is a practical strategy for tight entry corridors. A simple example is a round wood board cut into three pieces with about 1/8 in gaps for a floating art effect, or a painted rectangle grid that doubles as a chalkboard, both of which give the short wall a purpose beyond hiding the door stack.

Light finishes, mirrors, and vertical storage make compact zones feel more open, which helps the sliding stack blend into the room. Keeping the wall and door faces in a similar light tone, placing a mirror opposite a window to bounce light, and adding a slim shelf above the stack can reclaim height without crowding the opening.

Space optimization succeeds when every inch is assigned a purpose, and a telescopic bypass system is strongest when it is paired with that kind of intentional planning. Measure carefully, build solid backing, and treat the short wall as an asset, and the opening will work as hard as the room around it.
