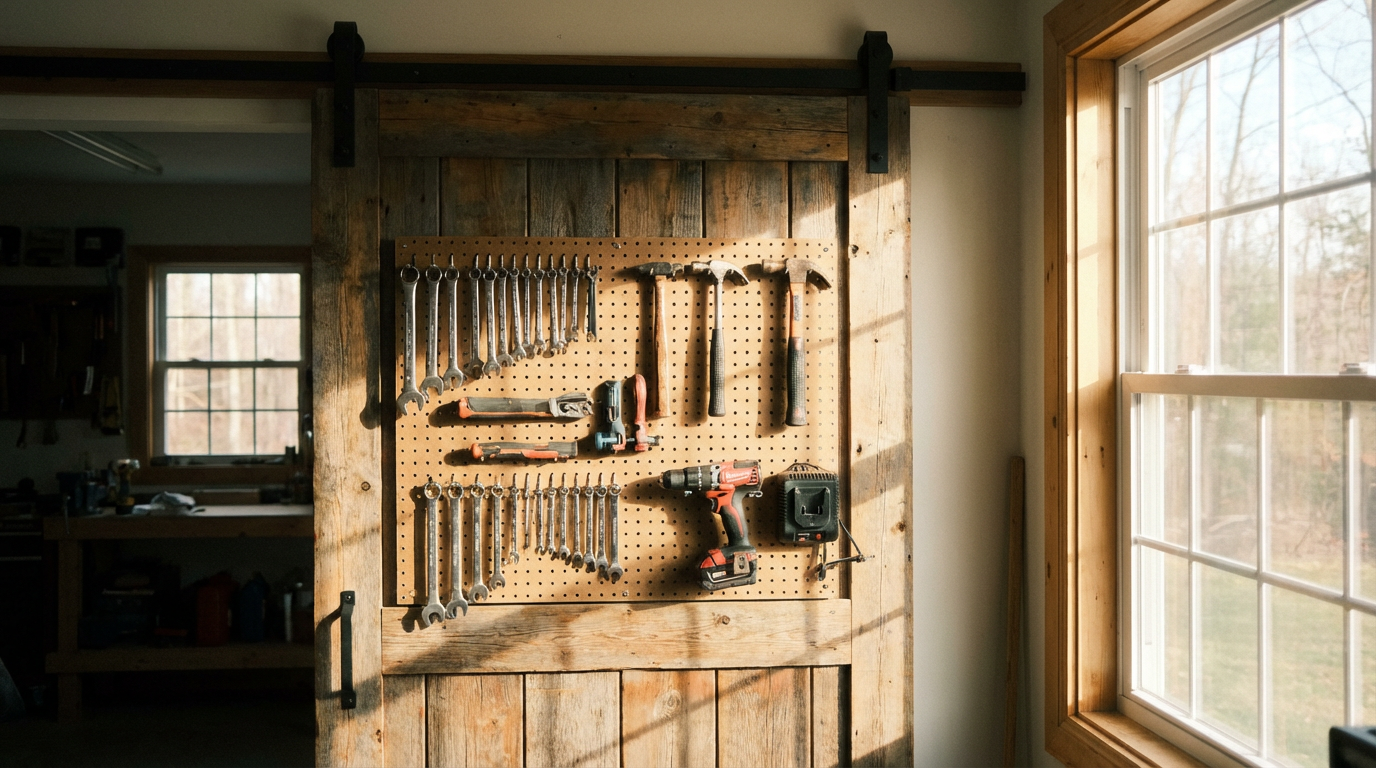

Mobile Tool Wall: Dynamic Load Limits of Installing Pegboards on Garage Barn Doors

A pegboard can ride on a sliding barn door if you treat it as a moving load, keep weight low and centered, and anchor into solid structure with a real spacer gap.

Does your barn door rattle when you reach for a drill, or do hooks bounce as the door rolls? In hands-on pegboard testing, the board often outlasts the hooks and hardware, so the weak link is predictable. This article shows how to set a safe weight range and mount the system so the door glides and your tools stay secure.

Why a sliding barn door changes the load

A pegboard stress test shows outward-pulling shelf brackets can fail around 20 lb, and the same test cautions against bulky items that jut out more than about 10 in. A sliding barn door adds motion, and motion turns a steady tool wall into a moving load, which makes those outward forces more important. On a moving door, a shallow shelf holding a sander behaves like a lever, so I keep shelves light and move heavy tools to flatter hooks close to the panel.

Downward load versus outward pull

Boards with 1/4 in holes designed for heavy-duty use take matching hooks that fill the hole and resist wobble better than small-hole boards meant for light items. Door movement works loose hardware faster than a fixed wall does, so fit matters. If a long pry bar swings on a loose hook, the next door slide can pop it free, so I choose a tight hook fit for long or awkward tools.

Setting realistic load limits on a mobile wall

In a controlled test of standard 3/16 in hardboard, a 100 lb safe limit was presented for a 24 x 17.5 in panel when loads pull forward, even though straight-down loading went higher before the hooks failed. For a door-mounted panel of that size, I cap the total around that 100 lb mark and cluster the densest tools near the centerline of the door to reduce twisting.

Capacity estimates can also be framed by area, since typical wood or plastic boards are described as roughly 20–50 lb per sq ft depending on material and mounting quality. A 4 sq ft panel would suggest 80–200 lb on a fixed wall, but for a moving door I treat the low end as the target and leave margin for motion. That simple math keeps expectations realistic.

Metal systems can take more when fastened well, and a long-running install reported 100+ lb on one board with another panel reaching about 150+ lb when anchored into studs with four screws. That spread in numbers is a reminder that material, mounting, and load direction matter, so I treat those higher figures as upper bounds rather than goals.

A pegboard is a wall-mounted panel with holes used to hang tools, and material choice changes both capacity and door weight. Plastic stays light but is less strong, wood looks nicer but can be pricier, and metal is the heavy-duty option for large tools, so the right pick depends on how much the door hardware can comfortably carry.

Mounting details that matter on a barn door

Whatever material you pick, the board needs a spacer gap so hooks seat and release cleanly; a standoff or rail system creates that required gap. Drill-free options like over-the-door hooks with anti-slip pads are noted for light loads only, and on a sliding door they must still clear the track. That extra depth means you should test for track and trim clearance with an empty board before loading it.

Furring strips are another spacer option, and they are strips mounted to keep the pegboard off the surface so the hooks can work. For a full-size panel, I use a helper to hold it in place while fastening, then slide the door several times to confirm nothing binds.

Fasteners and anchors should match the substrate, and the safest approach is fastening into solid structure rather than relying on thin skins. On a barn door, that means finding the structural members of the door or adding a backer that spreads load, then tightening hardware and doing a gentle pull test before adding tools.

Pros and cons in a garage workflow

A pegboard is valued because it is sturdy and flexible, easy to rearrange, and it makes tools visible, which is a big win in tight garages where every sq ft matters. The trade-off on a moving door is that the same visibility comes with motion and clearance limits, so bulky items and deep shelves need stricter weight discipline and more frequent checks. In practice, the door works best as a mobile zone for hand tools and light accessories rather than a home for your heaviest gear.

Maintenance and layout habits that keep a door safe

Routine upkeep keeps the system predictable, and periodic checks for loose hooks and damaged parts are a small habit that prevents surprises. In my own installations, I re-check the tightness after the first week of use and again after any major layout change.

If hooks tend to jump out as the door moves, barbed hooks or zip ties can stabilize them, and a small dab of hot-melt glue adds backup when you don’t need frequent changes. I reserve that for rarely moved tools like a stud finder or a specialty clamp so the wall stays adjustable.

A barn-door pegboard can be a smart micro-space win when you treat it like a moving load and respect the hardware limits. Keep weight centered, stay close to the door surface, and let the smooth glide of the door be your quiet confirmation that the system is balanced.
