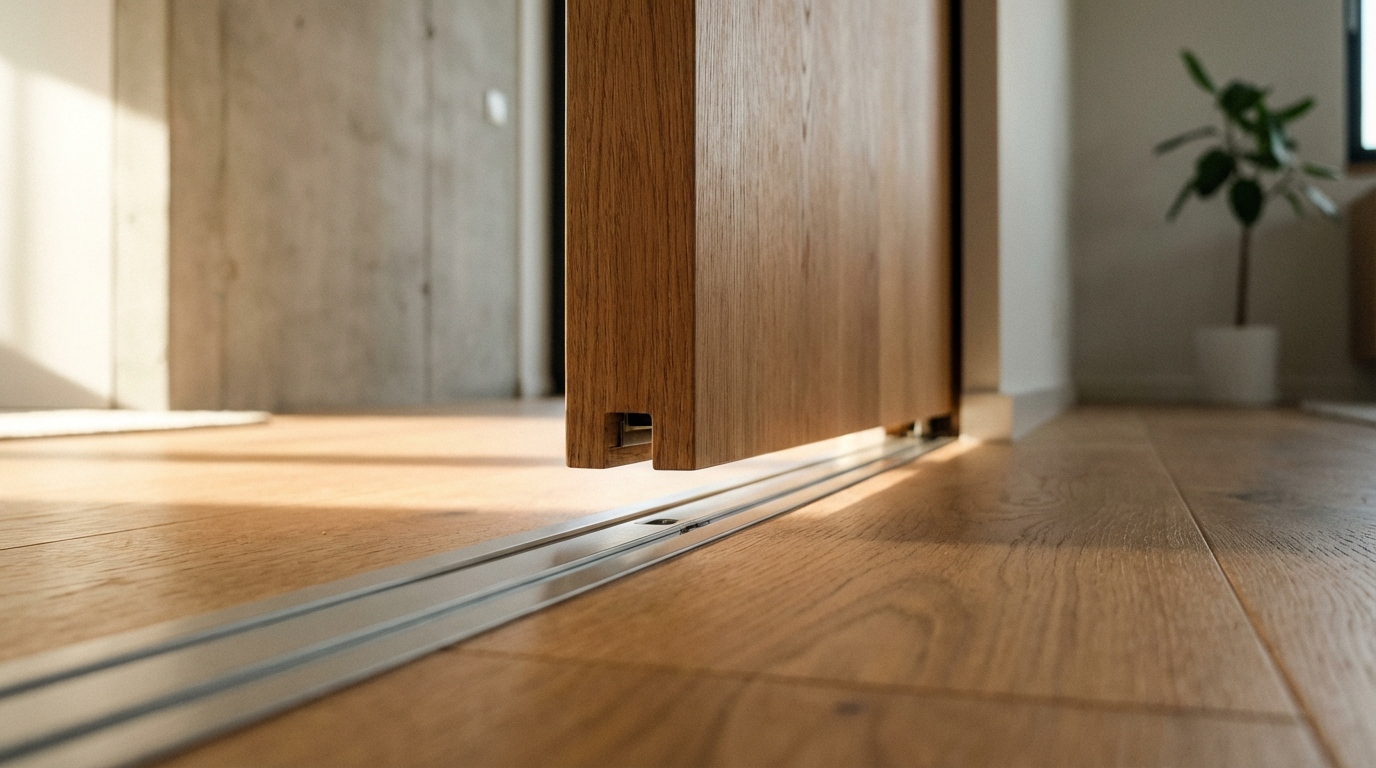

Maglev Guide (Contactless): Achieving True "Zero Friction" Bottom Guiding Using Repelling Magnets

Repelling magnets can unload a bottom guide and reduce wear, but stability and side-load control determine whether the glide feels truly smooth.

A contactless bottom guide can feel near frictionless when repelling magnets carry the load, but it only works when stability and guidance are engineered as carefully as lift.

Does your sliding partition scrape and chatter every time you try to open up a tiny room? The same no-contact principle that removes wheel-to-rail wear in high-speed rail explains why a magnet-based guide can glide quietly. You’ll get a clear, practical path to using repelling magnets without the wobble, stall, or safety surprises.

Zero-friction bottom guiding, defined

In maglev systems, powerful magnets lift a vehicle above the track to eliminate wheel-track contact, and a bottom guide adapts that idea by placing like poles face-to-face so repulsion carries part of the load. For micro-living layouts, that means the floor interface can shift from a grinding contact point to a mostly contactless bearing that protects finishes and keeps movement light.

Maglev shows how far contactless guidance can go: the Japanese L0 test train reached 375 mph in 2015, yet the same source notes that air drag dominates energy use at very high speed, so “zero friction” still demands thoughtful power and control. In a home, speeds are tiny, but that lesson still matters because guidance and stability do more work than most people expect.

Stability is the hard part for repelling magnets

Lift without stability drifts

Static magnetic fields alone cannot keep ordinary magnets stably levitated because Earnshaw's theorem rules out stable equilibrium, which is why a purely repelling bottom guide tends to hunt side to side unless damping, diamagnetic materials, superconductors, or active control step in. A quick bench mock-up makes the drift obvious long before a full build.

Guidance must resist side loads

Maglev guideways use magnetic forces to counter gravity and acceleration so vehicles stay stable and avoid flipping, a guideway stability role described in building-scale maglev references, and the same side-load problem appears when a sliding panel is pushed off center in a micro-apartment. The bottom guide has to resist those sideways loads, not just float the weight.

What small prototypes teach

Classroom prototypes show that guidance magnets keep the train centered on a roughly 12-inch track, a scale that mirrors a cabinet slide and reminds you to design for centering before chasing speed. That small scale lesson is exactly what keeps a compact room from feeling fussy or fragile.

Choosing an approach for home-scale bottom guides

Electrodynamic suspension uses induced-current repulsion and needs takeoff speed; in an induced-current suspension example the vehicle floats only after it reaches takeoff speed, which makes pure EDS impractical for a door or storage wall that starts from rest. If the panel must sit still and still feel effortless, EDS is fighting the use case.

Electromagnetic suspension can levitate at low speed but depends on sensors and feedback because negative-feedback control is what adds damping and stability, so the most realistic home strategy is to let repelling magnets unload the bottom guide while a slim mechanical rail keeps the panel centered. That hybrid approach gives you a quiet glide without turning your wall into a laboratory experiment.

Performance and comfort benefits you can expect

Maglev designs are quieter and have minimal wear because there is no wheel-rail contact, and systems already target speeds above 350 mph, which hints at how smooth contactless motion can feel even when travel is only a few feet. The comfort story is real, even if the scale is different.

In compact apartments, the payoff is a glide that feels more like a floating panel than a grinding track, with less vibration telegraphed into the floor. That translates into calmer acoustics and fewer maintenance headaches, especially where grit and pet hair usually collect at the bottom guide.

Costs, infrastructure, and reliability realities

The hard reality is cost: the guideway holds most components and the track is the main cost driver, so full building-scale maglev is rarely justified unless the use case is extraordinary. For home-scale projects, the economics only work when the magnet system is small, targeted, and paired with simple guidance.

Early deployments also show reliability risk: the Birmingham Airport maglev used a 1,969-ft guideway, a reminder that controls and maintenance must be designed as carefully as the magnets. A bottom guide that cannot be tuned or serviced easily will not stay “zero friction” for long.

For micro-living layouts, the most resilient path is to treat repelling magnets as a load-sharing tool, not a magic hover trick. When the guide is engineered for stability, alignment, and serviceability, the bottom edge can finally glide as quietly as the rest of the room.
