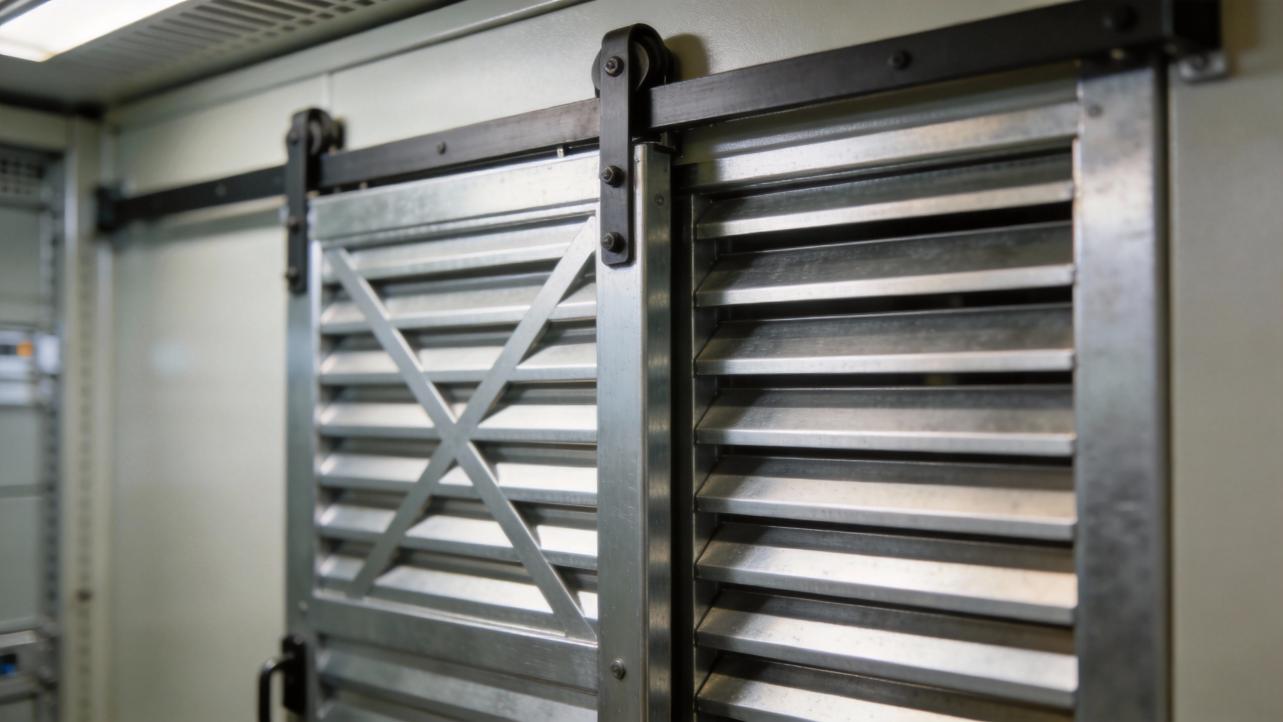

Home Server Room CFD Simulation of Airflow Cooling Efficiency for Metal Barn Doo

CFD can show whether a louvered metal barn door improves cooling or recirculates hot air and can guide louver size and placement before you cut metal. In a compact home server room, it works best when you validate the model with a few temperature readings.

Louvers change pressure and mixing in tight rooms

In small home layouts, the barn door often becomes the main air pathway, so the door choice is a thermal decision, not just a style one. Designers compare louver free area and pressure drop because a great-looking grille can still choke airflow if the free area is low.

Quick example: a 3 ft x 7 ft door is 21 sq ft of opening. If the louvers provide 40% free area, you effectively get about 8.4 sq ft of airflow, and that shrinks again with screens or filters. In a small room, that loss can push fan speeds up, raise noise, and trigger short-circuiting between intake and exhaust.

The basic goal is still simple: move cool air through equipment once and get the hot air out. That airflow management principle matters even more in a tight footprint where there is little space for mistakes.

When CFD earns its keep in a home server room

CFD is most valuable when you have competing air paths or odd geometries, which is common with barn doors and mixed-use rooms. A CFD airflow and temperature map can show whether the hot plume from the rack curls back to the intake or clears the room cleanly.

Concrete example: if your exhaust air is about 95°F and you want a 75°F intake, a CFD slice showing 84°F at the top rack means you lost 9°F of margin. That is a clear signal to move the exhaust higher, add a baffle, or increase intake area before you rely on bigger fans.

Nuance: most CFD studies are based on larger data centers, so in a home room you should validate the model with a few probe readings before trusting the color contours.

Sizing and verification loop for a barn-door setup

Ventilation is more than a hole in the wall; it's a managed path to prevent hot spots and slowdowns, which is a core point in server room ventilation. If your rack load releases roughly 5,100 Btu/hr, a 6,000 Btu/hr mini-split leaves little headroom once you add lighting, UPS heat, and airflow losses from louvers.

Steps for a small home footprint:

• Put intake low on the door and exhaust high on the opposite wall to use natural buoyancy.
• Choose acoustic louvers if the door faces a living area or bedroom.
• Keep a clear path around racks and seal unused openings so air doesn't bypass equipment.
• Test with a little smoke and temperature probes at top, middle, and bottom, then adjust placement.

That loop keeps the barn-door aesthetic while protecting uptime in a small, shared home space.
