How Dropped Ceilings Can Support Barn Door Tracks: Structural Reinforcement Points

Most drop ceilings cannot safely carry a barn door track on their own. To hang a ceiling-mounted barn door, you must bypass the lightweight grid and transfer the load into the structural ceiling with carefully placed reinforcement.

Understand What Your Drop Ceiling Can (and Can't) Do

Drop ceilings are secondary ceilings hung on a light metal grid below the real structure, mainly for acoustics, access, and aesthetics, not for heavy loads like doors. In typical systems, the grid and tiles are only meant to hold their own weight plus small fixtures, not a moving 150-250 lb slab door sliding back and forth drop ceilings are secondary ceilings.

Even when a dropped ceiling hides ductwork, wiring, and insulation and helps with comfort, the panels and grid remain non-structural; heavier items need independent support from the framing above suspended ceiling grids and panels are not structurally strong.

An important nuance is that some systems are designed to carry recessed lights, but that is a very different load profile from a wide, dynamic door that is pulled sideways every day.

Step One: Find a Real Load Path

If you already have a drop ceiling, treat it as a finish layer you must work through, not something you can fasten the track to. The actual support has to come from joists, beams, or metal framing above the plenum.

Start by removing tiles in a strip where the track will run so you can visually locate joists or roof framing. Your goal is a continuous line of solid structure where you can anchor a header board or hardware posts, similar to how dedicated ceiling-mount barn door hardware is fastened to ceiling beams rather than drywall or grid.

In small spaces, this might mean shifting the opening an inch or two so the future track line crosses at least three framing members. That small design tweak often matters more for safety than the exact tile layout.

Reinforcement Strategies for Barn Door Tracks

Once you have traced a solid load path, you can design the reinforcement that actually carries the barn door.

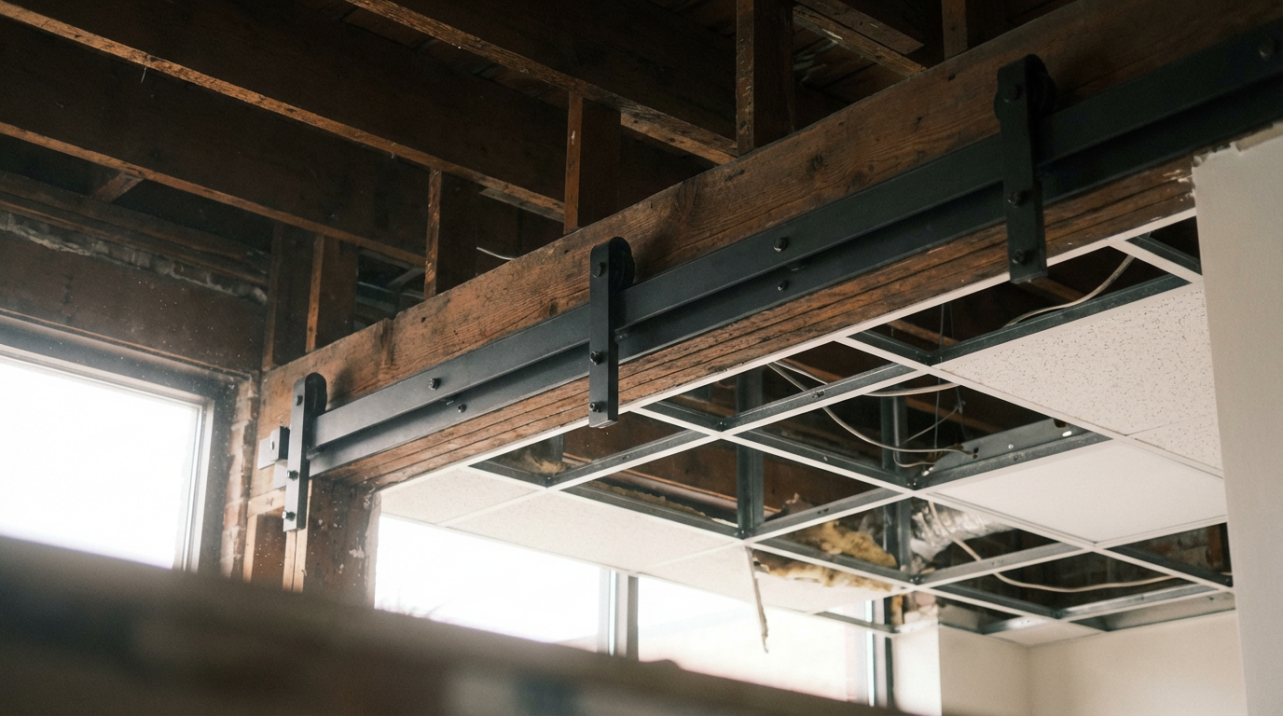

A continuous header is one reliable option: run a straight 2x6 or 2x8 (or a steel channel) above the grid, lag-bolted into every joist it crosses, and then mount the track to this member through neatly cut openings in the tiles.

Post-through supports work well for systems with ceiling posts; cut tight holes in the tiles and fasten the posts directly into beams so the posts carry the door while the tiles simply conceal them.

Always account for weight and safety margin: a common 36 in x 84 in solid wood door can easily approach 200 lb, so choose hardware rated at least 1.5 to 2 times the door weight, and look for low-clearance systems engineered for doors up to about 350 lb when you know the door will be especially heavy.

Stiffen the stop points by adding blocking between joists where the door hits its soft-close stops to reduce bounce, vibration, and long-term loosening of fasteners.

Wherever hardware passes through tiles, maintain a small clearance gap so the moving door never rubs or drags on the ceiling, which protects the grid from damage.

In compact homes, it often makes sense to overbuild the hidden header slightly; you will never see it, but it provides peace of mind every time someone pulls that door open a little too hard.

Designing Around Low Ceilings and Tight Plans

Dropped ceilings usually reduce headroom by several inches, which matters a lot in rooms with 7-8 ft ceilings. If you are already tight on clearance, consider stopping the drop ceiling short of the opening or creating a structural strip where the original ceiling stays exposed for the track line.

Low-profile and ceiling-mount kits can reclaim precious inches by tucking the track very close to the structure; some low clearance barn door hardware works with roughly 3-4 in of space above the door. In very tight hallways or closets, a single-track bypass system that hangs from the ceiling can let two doors share one compact footprint single-track bypass sliding barn door hardware.

When you sketch your layout, reserve wall space that stays clear of switches, vents, and tall furniture where the door will slide. In micro-living, that no-build strip along the wall is as important as the reinforcement overhead.

When to DIY and When to Bring in Help

A ceiling-mounted barn door is very doable as a DIY project, especially with a well-designed kit and clear framing paths DIY ceiling-mounted barn door. However, pairing a heavy door with a non-structural drop ceiling raises the stakes.

Call a pro such as a carpenter, general contractor, or structural engineer if you cannot clearly see or identify the framing above the drop ceiling, if the door will be unusually heavy, extra tall, or part of a multi-panel room divider, if the track line crosses HVAC, plumbing, or electrical components you are unsure about relocating or notching around, or if the ceiling is part of a larger structural system (such as a metal building) you do not fully understand.

Handled thoughtfully, your dropped ceiling and barn door can coexist beautifully: one hiding the clutter, the other flexibly carving up precious square footage, as long as the structure behind them is doing the heavy lifting.
