Ceiling Load Reinforcement for Barn Doors: Embedding Steel Tubes in Drywall Ceilings

Plan the support, clearances, and finish so a ceiling-mounted barn door glides smoothly without loading the drywall.

Treat the steel tube as the real support and the drywall as a finish skin around it. In a small room, a swing door can steal the only clear path and the wall you would use for a rail can be tangled with pipes or wiring. Ceiling-mounted doors fit these blocked layouts and keep a sliding door possible without tearing apart the whole room. This approach clarifies support planning, hardware placement, and ceiling closure so the door moves smoothly.

Fit the ceiling-mounted barn door to your room

A ceiling-mounted barn door uses hardware fixed to the ceiling rather than above the wall opening, which is why it becomes practical when a swing door wastes floor area and a hidden in-wall slider is blocked by utilities.

A ceiling-mount track system should match the door's size and weight, so the first layout check is the ceiling-to-floor clearance along the full travel path. That clearance tells you where the steel tube can sit inside the drywall while still letting the hangers and door move freely.

Rooms with ceilings lower than about 8 ft 2 in tend to feel cramped, which means the tube enclosure needs a slim profile and a finish that visually lifts the plane. A light-reflective surface and tight alignment to the wall line keep the ceiling from feeling even lower once the reinforcement is concealed.

Structural reality: the ceiling must carry the moving load

A structural capacity check and height clearance review is standard practice for ceiling-mounted systems, and the same caution applies when a barn door will roll overhead. If the ceiling already hosts mechanical or lighting elements, this review clarifies whether the framing can accept the added load or whether an engineer should specify the reinforcement details.

A ceiling opening is planned by defining its purpose and size first, with reinforcement and code compliance built in to protect the assembly, and a steel-tube embed should follow that same logic. Treat the drywall slot as a purpose-built opening that is integrated into the ceiling system, not a last-minute cutout.

Embedding the steel tube in drywall: practical construction sequence

Layout and rough-in

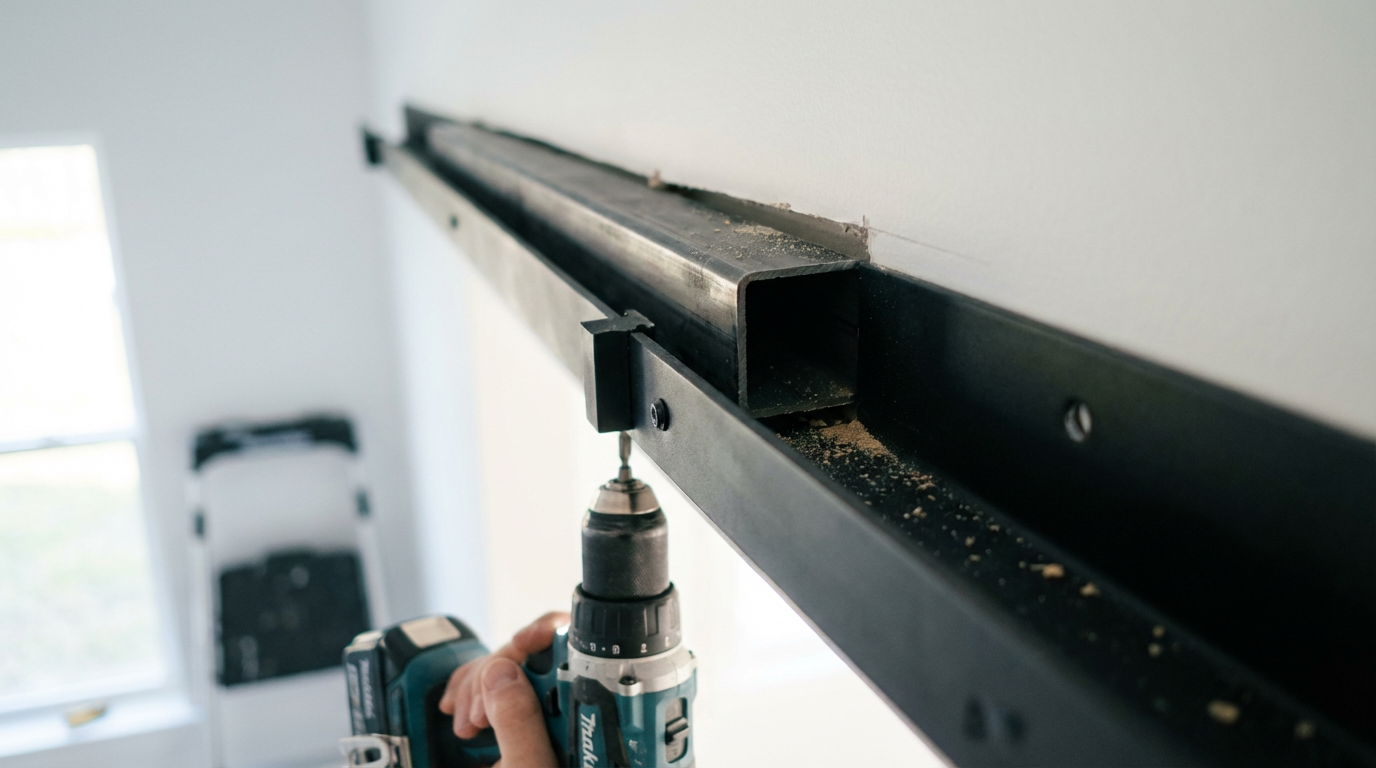

The clearance requirements of ceiling-mount hardware set the tube's position, so mark the full door travel line on the ceiling before you close the drywall. Align the tube with the track fastener locations so the drywall conceals the reinforcement rather than carrying it.

Mount, hang, and stabilize

A ceiling-mounted barn door installation typically progresses from mounting the ceiling hardware to hanging the door and then adding the floor guide and handle for stability and ease of use. That sequence is especially helpful in tight rooms because you can confirm the door path before you commit to final trim and finishes.

The tools and techniques should match the ceiling material and local code guidance, so patching around the tube and track should be treated like any other planned opening. If future access for other systems is likely, a discreet access point is better than burying everything behind finished drywall.

Benefits and tradeoffs in micro-living

Overhead systems free floor and wall space in dense or multi-purpose rooms; in one small den retrofit, low pipes and wiring in the only viable wall cavity made the ceiling mount the cleanest way to get a sliding door without moving services. When a swing radius steals your only clear path, shifting the motion overhead can return usable square footage for storage or a compact desk.

Spaces with low ceilings can feel confined, and an added soffit for the steel tube can intensify that feeling if it is bulky or dark. A shallow, clean enclosure aligned to the wall line keeps the central ceiling plane higher and the room more comfortable.

Because ceiling-mount systems depend on measured clearance, the door thickness, trim profile, and handle projection need to be decided early so the tube does not end up too low or too far from the wall.

When you plan the hidden support early and respect the ceiling as a system, the door reads as a deliberate architectural move rather than a compromise. The best outcome in micro-living is a quiet, space-saving divider that keeps the room open and the ceiling intact.
