Can Arched Doorways Accommodate Barn Doors? 3 Creative Solutions

That arched opening might be your favorite feature in the house—until you realize you need real privacy, better sound control, or a way to close off a small room without losing precious floor space. After working with many “beautiful-but-impractical” arches, a pattern emerges: when you plan for structure, clearance, and privacy from the start, an arched opening can usually accommodate a sliding barn door without sacrificing its character. Here are three practical ways to do it, plus how to choose the option that fits your home and your daily life.

Understanding the Challenge: Arch vs. Barn Door

An arched doorway is more than a hole in the wall; it is a shaped frame that draws the eye, often with a semi-circular, “eyebrow,” or elliptical curve, and finishes that tie into the rest of the home’s style, from farmhouse to minimalist interiors. Many arches are intentionally left open as interior archways because the curve itself creates a sense of connection, height, and softness between rooms, and homeowners often treat them as long-term architectural investments rather than disposable trim interior archway ideas. When you add a movable door to that equation, you are combining a sculptural architectural element with working hardware.

A sliding barn door is essentially a surface-mounted door panel that rides on an exposed track above the opening, freeing up floor space in tight rooms like bedrooms, bathrooms, pantries, and closets sliding barn door. It depends on a stiff track, strong wall framing, and a stable floor guide so the door does not wobble, grind, or work itself out of alignment over time in typical barn door installations. Standard hardware kits expect a straight header above a rectangular opening, which is exactly what your arch does not provide.

The first technical friction point is clearance. Many barn-door kits want at least about 6 inches of space above the door, but low-profile systems can function with about 3–4 inches of total clearance, including a little “wiggle room,” which is critical when crown molding, ductwork, or low ceilings crowd the top of an opening and you are working with low-clearance barn door hardware. The second friction point is coverage and privacy: doors should overlap the opening by roughly 1–2 inches on each side to fully close the passage, yet arches lift the top edge and leave irregular gaps if you treat them like rectangular frames, a common issue with standard barn door hardware. The third is long-term behavior: barn doors are prone to sticking, misalignment, and noise if hardware is underbuilt or poorly installed, and those issues quickly show in everyday living as common barn door problems.

With that landscape in mind, there are three main ways to let an arched opening and a barn door coexist.

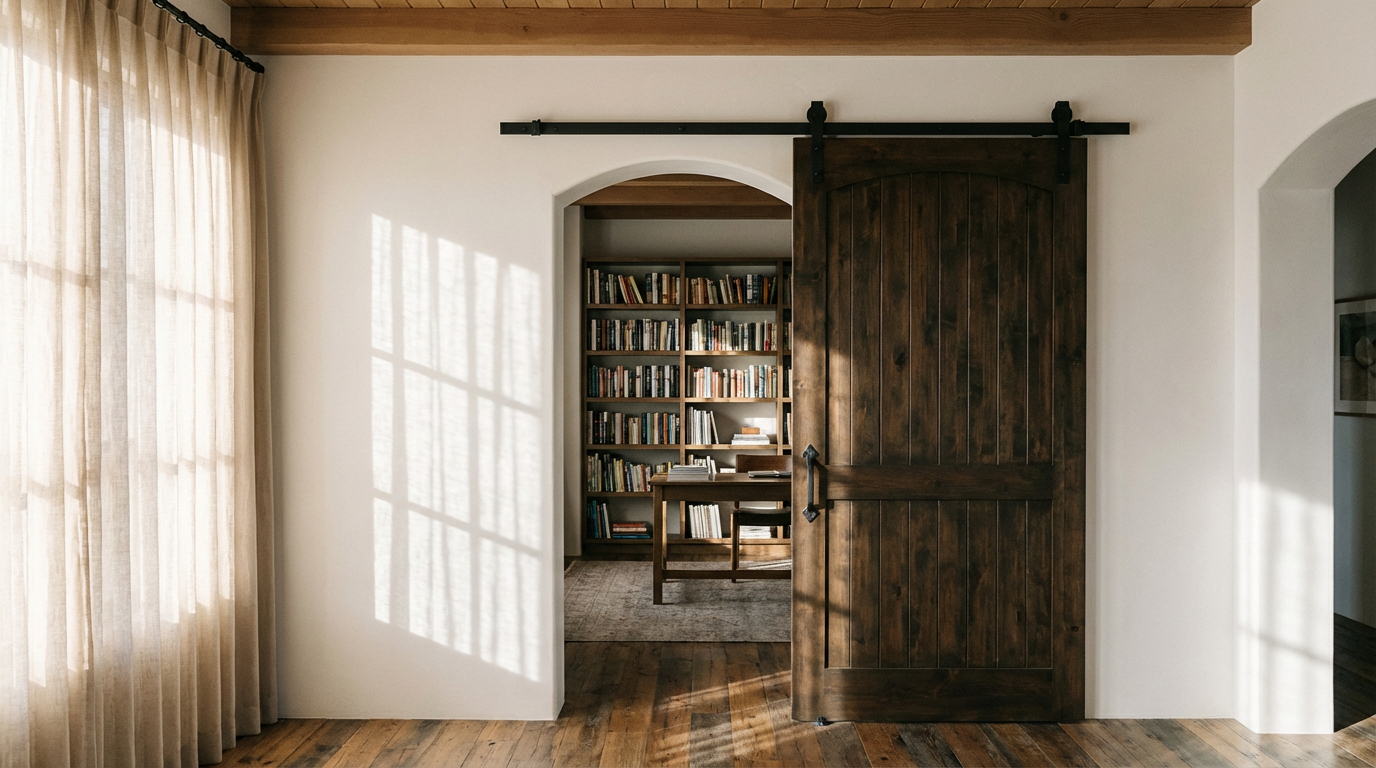

Solution 1: Let a Straight Barn Door Glide Over the Arch

How It Works

The simplest approach is to keep the arched opening exactly as it is and hang a standard rectangular barn door that slides across it. The door panel is sized wider and taller than the opening so it overlaps the arch on all sides; typical guidance is to choose a panel about 1–2 inches wider than the opening so it covers the trim and drywall edges when closed, following standard barn door sizing practices. A solid wood header or ledger board is fastened into wall studs above the arch, and the track is bolted through this header to carry the door’s weight safely, as in most barn door installations.

For many arched openings, there is not much straight wall between the top of the arch and the ceiling. When you are tight on height because of low ceilings, ductwork, or crown molding, a low-clearance track that needs only about 3–4 inches of room above the door can make this layout possible where a standard kit would not fit, which is exactly what low-clearance barn door hardware is designed for. The track length is chosen to span at least the width of the door plus some overrun, using off-the-shelf rails in the 5–7 ft range or combining rails for wider spans with compatible barn door hardware.

On the floor, a small guide or U-shaped bracket keeps the bottom of the door aligned so it does not swing away from the wall or bump the arch. In practice, one floor guide near the latch end is enough for a typical interior door, but very wide or heavy doors can benefit from guides near each end to prevent wobble under daily use.

Pros and Cons in Small Spaces

The biggest advantage of this approach is minimal surgery to your arch. You retain the curved drywall, plaster, or casing, and you can still enjoy it fully from at least one side of the wall even when the door is open, preserving the character of arched doorways. It is also the most DIY-friendly option: if you are comfortable with basic carpentry and power tools, you can build a simple tongue-and-groove barn door panel for well under a typical custom-door budget, as shown in a 6 ft by 3 ft DIY build that uses common lumber, clamps, glue, and a circular saw do-it-yourself barn door. For many small homes and apartments, that combination—light carpentry plus a purchased hardware kit—is enough to gain privacy and floor-space efficiency without changing the architecture.

Privacy is the main trade-off. Sliding barn doors sit off the wall, and that gap around the panel leaks sightlines, light, and sound more readily than a hinged jamb, which is why barn doors are inherently less private than conventional swing doors in most barn door privacy discussions. You can mitigate this by adding an overlapping trim board on the latch side to act as a door stop, using peel-and-stick weather-stripping or brush seals along the edges, and installing a continuous U-channel floor guide that pulls the door closer to the wall for a tighter fit, all common barn door privacy upgrades. For most bedrooms, home offices, and dens, these improvements push performance into “good enough” territory, especially when the main goal is visual separation rather than deep soundproofing.

From a maintenance perspective, this solution behaves like any other barn door: keep the track clean, periodically tighten fasteners, and address sticking or noise early, because misalignment, debris, or loose hardware are the most common barn door problems in daily use.

Solution 2: Create a Discreet Straight “Header” Inside the Arch

Sometimes the arch is so tight to the ceiling—or so ornate—that running a straight track across its face looks wrong or is impossible to support structurally. In those cases, you can create a short, flat header within the thickness of the wall so the arch remains visible, but the barn door closes against a straight surface that is hidden inside the opening.

On the framing side, this means adding horizontal wood blocking across the arch at the elevation where you want the door top to land, tying that blocking solidly into existing studs and arch framing. Techniques used to build or modify archways—such as cutting and fastening curved frames, then skinning them with drywall or plasterboard—transfer well to this type of work when you drywall an arch. In one method for creating arched openings, builders use 1/2-inch drywall on the faces, 1/4-inch drywall bent to follow the underside of the curve, and careful taping and joint compound to blend the new surfaces seamlessly how to make an arched doorway. The same layering strategy can help you “flatten” only the upper few inches of the inside opening while keeping the visible outer edge curved.

Once you have that hidden straight header, you treat the barn door more like a conventional installation. A wood ledger is anchored into wall studs above the revised opening, and the metal track is bolted through the ledger to carry the door’s weight, just as in typical barn door installations. Because the door now closes against a straight, flat surface rather than the raw arc, the gap around the panel is easier to manage with seals, and the casing transition where the arch meets the straight jamb can be mitred in a controlled way instead of forced into an awkward angle arched casing miter.

The cost of this neatness is that you are partially “squaring off” the opening. If your arch currently rises 5–6 inches above the original door frame height—a proportion often recommended to make spaces feel taller when ceiling height allows, and sometimes cited as ideal arched doorway proportions—adding a straight header will visually lower a bit of that extra rise. In a tall foyer or hallway, that may be a fair trade; in a low-ceiling room, you will want to mock up the new head height with painter’s tape before committing.

This approach tends to work best when you are already renovating the wall—moving doors, re-drywalling, or changing electrical—because the mess of cutting, framing, and plastering is easier to absorb in a larger project. It is also a good fit if you value a clean, modern look where the barn door and its trim feel intentional and integrated with other straight-headed openings nearby.

Solution 3: Build a Custom Arched Barn-Style Sliding Door

If you want the door itself to echo the curve of the opening, a custom arched barn-style sliding door is the most expressive—but also the most demanding—option. Structurally, an arched barn-style door behaves like any tall wood door: it must resist cupping, sagging, and seasonal movement while hanging from its top edge. Experienced builders recommend using narrower boards rather than very wide ones, keeping the door thickness around 1 inch to reduce dead load, orienting the diagonal brace so it works in compression from the hinge side toward the latch side, and using continuous glued tenons and slotted fastener holes to manage wood movement over time arched barn-style door design. Those methods are designed for full-size exterior barn doors, which makes them a robust baseline for an interior arched slider.

For the panel layout, you can adapt proven DIY barn-door builds that use tongue-and-groove boards, perimeter framing, and central design boards, then modify the top edge to follow an elliptical or eyebrow curve, similar to the approach in the earlier do-it-yourself barn door example. That DIY project shows how accessible the core construction can be with a sander, clamps, a circular saw, and a drill, while still producing a professional-looking door within a modest material budget. For a custom arch, the key extra step is carefully laying out and cutting the curved top so it mirrors your existing opening, which is where templates or arch-drawing tricks from doorway-building guides become especially useful.

Material choice matters more with a large, shaped door. Knotty alder offers a rustic, warm look but dents fairly easily, birch gives a smoother, lighter surface that suits bright interiors, and MDF provides a smooth, paint-ready skin that is affordable and relatively warp-resistant but quite heavy and not ideal for damp rooms like bathrooms. Glass panels deliver light and a contemporary feel yet demand extra caution because of their weight and fragility, while live-edge slabs are visually stunning but require robust hardware and support due to their mass. For most arched sliders, a solid wood or MDF core with added acoustic treatments (like seals and possibly a curtain behind the door) strikes a good balance between aesthetics and practicality for barn door privacy.

Because a custom arched door is often heavier than a simple flat panel, track and hardware choice is critical. Heavy-duty steel or aluminum tracks, strong rollers, and soft-close mechanisms protect against sagging and noisy operation, especially when combined with a properly anchored header and regular maintenance, as recommended for durable barn door installations. Low-clearance hardware is again helpful when arches, ceiling height, and trim leave little room above the door, making low-clearance barn door hardware a frequent companion to these designs. If you underspec the hardware, problems like sticking, misalignment, and premature roller wear show up quickly and may require a full reinstall, echoing the most common barn door problems.

The payoff is that when closed, the door and the opening read as one continuous curve, which can turn a small pass-through or bedroom entrance into a focal point rather than a compromise for arched doorways. In micro-living layouts, that kind of “architectural plus functional” move helps every square foot work harder without feeling utilitarian.

Comparing the Three Approaches

Choosing among them means weighing how much you want to preserve the original arch versus how much performance and precision you need from the door. If the arch is a signature feature you do not want to cut or reshape, a straight barn door that glides over it is usually the least invasive, especially when paired with privacy upgrades like overlapping trim boards, seals, and a sound-deadening curtain mounted behind the door, all standard barn door privacy improvements. If you are already remodeling and prefer crisp, squared lines around doors, shaping a discreet straight header inside the arch is more effort up front but delivers a clean, predictable closing surface that cooperates with barn-door hardware and trim, using the same principles you would apply when you drywall an arch.

When acoustics are critical—for example, if one side of the arch is a late-night TV room and the other is a child’s bedroom—it is important to remember the ceiling on what barn doors can do. Even with solid-core panels, seals, and curtains, a sliding door rarely matches the sound isolation of a multi-layer wall; one builder notes that three layers of 1/2-inch drywall over a curved backing can outperform most typical residential doors for sound blocking, which is a useful reference point if you are debating whether to install a door in the archway or fill it in. In that kind of scenario, you may ultimately decide to treat the arch as an opening to be filled rather than a doorway to be closed, especially if through-access is no longer needed.

Long term, whichever solution you choose will live or die by installation quality and small, ongoing habits. Accurate measuring, level tracks, solid backing, and appropriately rated hardware prevent many of the sticking, misalignment, and sagging issues that plague barn doors under daily use in real-world barn door installations. Periodic cleaning, lubrication, and inspection of rollers, tracks, and floor guides keep the system running smoothly and help you avoid the slow drift into noisy, hard-to-close behavior that defines common barn door problems.

FAQ

Do barn doors work over arched openings in bedrooms or bathrooms?

They can, but you need to be honest about your privacy needs. Because barn doors float off the wall, they almost always leave small gaps that leak light and sound, though overlapping trim boards, weather-stripping, brush seals, and even a sound-deadening curtain can significantly improve performance, as many barn door privacy guides note. For bathrooms or rooms that need strong sound isolation, building a thicker wall or multi-layer drywall partition across the arch will usually outperform any door solution, which is why some builders choose to install a door in the archway opening only after reframing it.

How much space above an arched opening do I need for barn door hardware?

Standard barn-door hardware often needs at least around 6 inches of clearance above the door, which can be hard to find above an arch, but low-profile tracks can function with roughly 3–4 inches of total space and are specifically designed for situations with crown molding, ductwork, or low ceilings, the same conditions that call for low-clearance barn door hardware. No matter the hardware type, you will also need solid framing or a header in that zone so the track can be lag-bolted into something stronger than drywall, as in any safe barn door installation.

Is a custom arched sliding door realistic as a DIY project?

Building a basic sliding barn door is within reach for many DIYers, as shown by projects that use standard tongue-and-groove boards, glue, screws, and ordinary tools to create finished doors at modest cost do-it-yourself barn door. A true arched barn-style door adds complexity: the curved top must match the opening, structural details like board width, brace orientation, and joinery become more important, and the heavier panel demands high-quality hardware and careful installation, as emphasized in arched barn-style door design resources. If you are comfortable with detailed layout and patient finishing, it can be a satisfying DIY; if not, combining a pro-built door with a well-installed track is often the most efficient route.

When you treat your arch and barn door as a single system instead of separate style choices, you can turn that awkward “how do I close this?” question into a feature that actually works for your daily life. With the right combination of structure, hardware, and a solution tailored to your space, your arch can keep its character and still give you the control you need over light, sound, and privacy.
