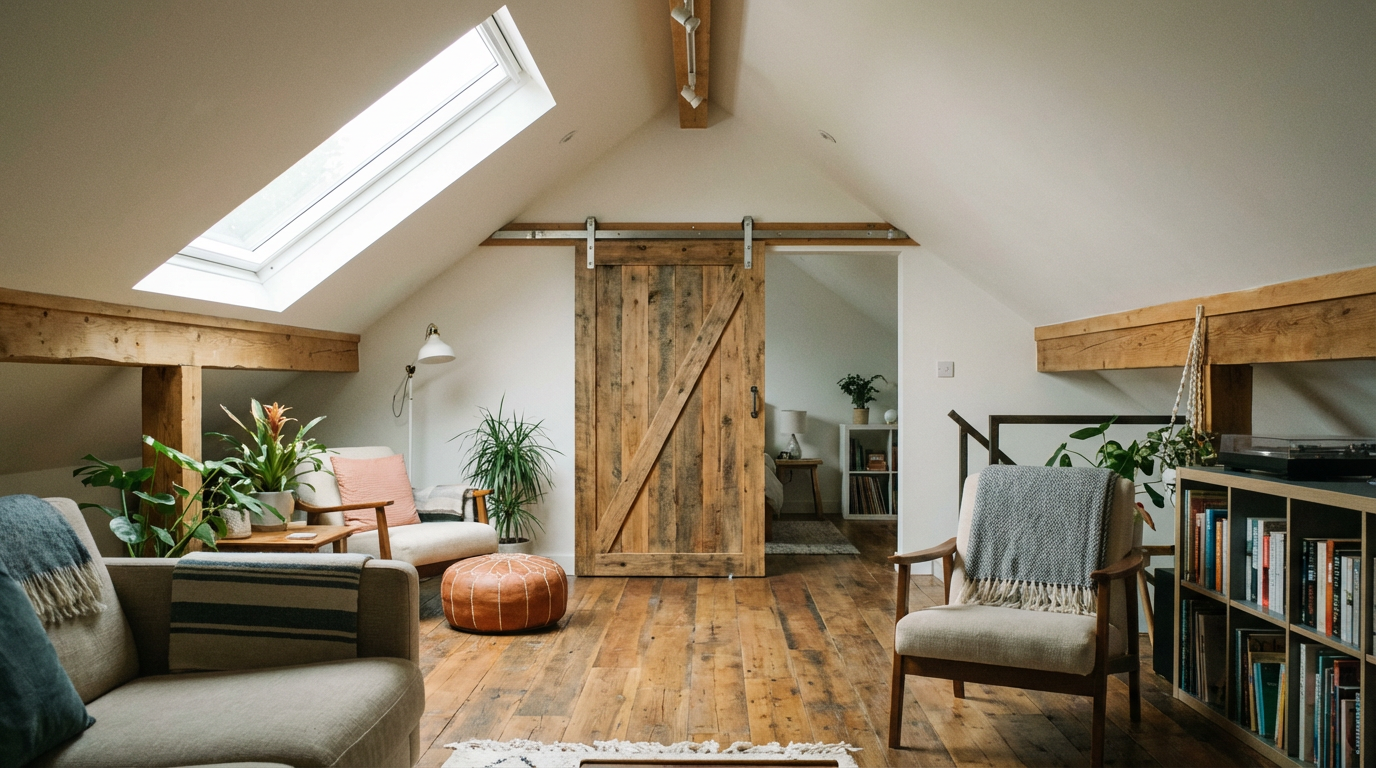

Attic Skylight Linkage: Smart Scene Programming to Auto-Close Skylights When Barn Doors Open

This article explains how to connect barn-door sensors to skylights so rain stays out while daylight and airflow stay under control.

Linking your attic skylights to a barn-door sensor lets them close before wind-driven rain can enter, protecting finishes while keeping daylight and ventilation on your terms.

Do you slide those barn doors open for a breeze and then feel that gut drop when the sky suddenly turns? Rain-sensing, auto-closing skylights already let compact homes manage weather without giving up light or airflow. This guide gives you a clear plan for pairing the door signal with skylight control, plus the design and installation choices that keep a small attic bright and dry.

Why a Barn-Door Trigger Matters in Micro-Living Attics

Overhead skylights can deliver about three times the illumination of same-size vertical windows, which is why they are a favorite in tiny homes three times more illumination. That means a 2 sq ft skylight can feel like the light of a 6 sq ft wall window, which is valuable when wall space is taken by a barn-door track and storage. But that same overhead opening becomes a vulnerability when the doors open to the outdoors and a gusty storm changes direction.

The linkage itself is a simple rule: when the barn doors open, the skylights close, and when the doors close and conditions are safe, the skylights return to your preferred setting. In compact attic retrofits, the most comfortable results come from balancing quick ventilation with reliable shutoff so you are not sprinting for a ladder every time the weather shifts. That is the core benefit of tying a large door opening to an overhead opening.

Define the System: Skylight Types, Light Wells, and Roof Constraints

Fixed skylights stay closed for steady daylight, while vented skylights open to add airflow, which is why moisture-prone rooms benefit from venting vented skylights open to add airflow. Fixed units are simpler and often less expensive, but they do nothing for heat release; vented units add comfort yet need dependable closure when weather turns. For a barn-door linkage, the tradeoff is clear: you gain weather protection by closing vented units when doors open, but you lose some cross-breeze in that moment.

Tubular skylights are smaller and use roof-mounted collectors, and their small surface area minimizes heat loss and heat gain tubular skylights are smaller. If your attic framing leaves only a narrow bay between rafters, a tubular unit can be the difference between daylight and a dark corridor. That smaller opening can be a smart choice when the barn doors already provide the big view and fresh air.

A real-world attic install placed a venting skylight about 18 inches from a chimney and required an engineer’s truss reinforcement plan before cutting the opening. That same project angled the light well to spread daylight, a reminder that the shaft between the roof opening and ceiling affects how far light travels into the room. In a tight attic, a flared light well can do as much for brightness as adding another fixture.

Programming the Auto-Close Scene for Weather Protection

Door-to-skylight logic

Operable skylights with rain-sensing auto-close can already protect against sudden showers, making them a solid base for door-triggered scenes. Scene programming is the set of if-then rules your smart home follows, so you add the barn-door contact sensor as the trigger and set skylights to close, with blinds closing if you want heat and glare control. For example, when the doors slide open for a breeze, the skylights close and the system waits until the doors shut and the weather clears before reopening to your preferred vent position.

Overrides and everyday living

A good scene respects how you actually live, so it should include a manual override for calm, clear days when the door is open for moving furniture or hosting friends. It should also avoid rapid cycling by waiting for a stable door-open state before acting, which prevents skylights from opening and closing when someone brushes past the door. The upside is lower risk of wind-driven rain and fewer worries; the downside is reduced natural ventilation during door-open periods, so consider a secondary vent or fan if that breeze is important.

Weather-Ready Hardware and Envelope Details

Flat or low-slope roofs hold water longer, so a curb-mounted or dome-style skylight with proper flashing and insulated framing is critical for durability flat roofs hold water longer. If your attic sits under a low-slope shed roof that opens to a barn-door terrace, raising the skylight above the roof surface helps water drain away instead of pooling at the frame. That approach also gives your automation more room to work, because the skylight can close without fighting a shallow pond at the seal.

Raised glazing shapes like domed or pyramidal units shed moisture and leaves more effectively than flat glass, which improves drainage performance. They can look more prominent on a small roof, so weigh the visual impact against the lower leak risk when storms hit during door-open times. In tiny footprints, durability often matters more than perfect roofline minimalism.

Cost, Installation, and Long-Term Confidence

Typical skylight costs range from about 2,500.00 per unit plus 1,500.00 in labor, depending on size and features. If you plan for two vented units, a rough working budget lands between $2,000.00 and $8,000.00 before any interior finish upgrades. That range helps you decide whether to invest in higher-performing glazing, motorized controls, or the extra carpentry for a more flared light well.

A tiny-home owner reported 13 years of Pacific Northwest downpours without leaks after installing skylights with the correct flashing and guidance, which shows how much installation quality matters 13 years of downpours without leaks. The tradeoff is cost versus risk: professional installation usually brings better sealing, code compliance, and warranty coverage, while DIY can save money but raises the odds of leaks and drafts if details are missed. If the barn doors open to active weather, that margin of safety is worth real consideration.

Linking barn doors to skylights is a small automation with a big payoff in a compact attic. Choose a skylight type that fits the room and roof, build the light well to spread daylight, and then program a simple close-on-door-open rule so the space stays bright, dry, and calm when the weather shifts.
