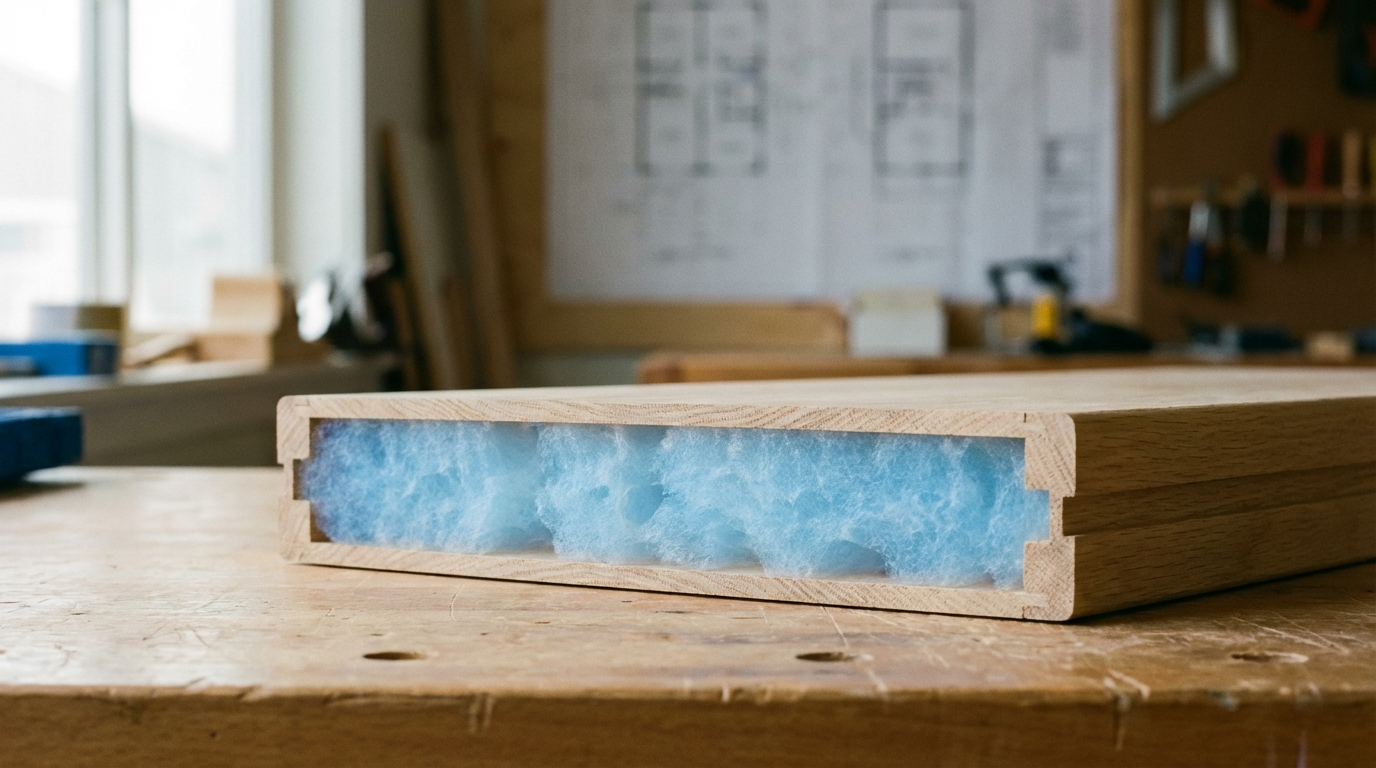

Aerogel Filling: Ultra-Lightweight Future Door Cores with Insulation Surpassing Brick Walls

Aerogel-filled door cores deliver high insulation in thin, lightweight slabs that suit micro-living layouts.

Aerogel-filled door cores use extremely low thermal conductivity materials to deliver high insulation in a thin, light slab—ideal when every inch matters. In micro-living, that can make a door perform more like a thick brick wall without the mass or the space penalty.

Why door cores are the micro-living pressure point

Doors are thin compared with walls and often cut through the most insulated part of a compact envelope. If the door is about half the wall thickness, it can become the dominant heat-loss patch and create cold edge zones right where you stand.

In tiny homes or micro-apartments, the entry door often sits in a high-traffic, draft-prone zone. I treat it as a movable wall: it has to insulate like a wall but operate like a door.

Aerogels are among the lightest solids and stay effective at slim profiles, which keeps hinge loads, swing effort, and slab sag in check. For small units, that lighter door can also reduce hardware size and improve durability in daily use.

Thermal edge over masonry: why thin wins

Heritage retrofit data shows thin aerogel layers around 1.2–2 in can match performance where conventional insulation needs roughly double thickness. That is why a thin aerogel door core can surpass the insulation of a much thicker brick wall in practice.

A quick rule of thumb: if your door cavity can only spare 2 in, a material that halves the required thickness is the difference between wall-like performance and a thermal weak spot. If you can trim 1/2 in from each jamb using a slimmer core, you gain about 1 in of clear opening—a meaningful accessibility boost in tight layouts.

Forms and build strategies for door cores

Manufacturers supply aerogel blankets, particles, and boards that can be tuned to a door’s cavity depth and production method. For example, a 1 in core can be filled with two 1/2 in blanket layers for full coverage without voids.

Quick build logic favors blankets for uniform cores, particles for molded panels, and boards for rigid slabs; it also prioritizes a continuous layer to avoid seams that become thermal bridges, protects edges and lock blocks so hardware doesn’t crush the core, and seals joints between skins and stiles for airtightness.

Pay extra attention to rails, stiles, and lock blocks; they are the thermal bridges that can undercut a high-performing core.

Tradeoffs, durability, and when to specify it

Cost is the biggest hurdle: by volume aerogel can run up to roughly 10x conventional insulation, though the installed cost multiple is often under about 3x for equal performance. As a planning example, if a conventional insulated door is $300.00, an aerogel-core version could land under about $900.00 for similar thermal results—still premium, but not out of reach for a high-impact upgrade.

Fragility is the second hurdle, but polymer-reinforced aerogels are improving toughness and flexibility, which is promising for door cores that see daily knocks. Nuance: long-term field data across diverse climates is still limited, so plan for monitoring and warranty clarity.
